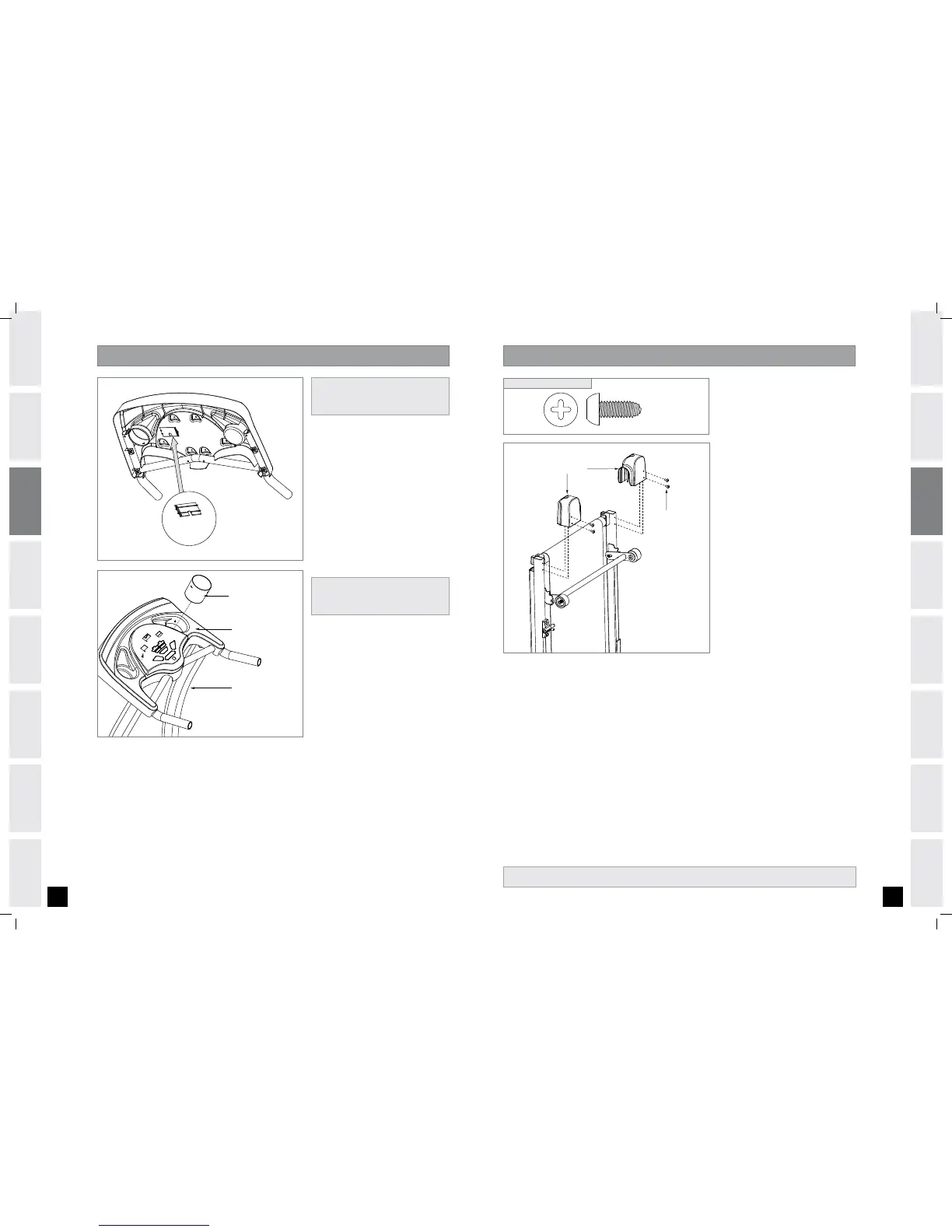

ASSEMBLY STEP 4
WATER BOTTLE HOLDER
CONSOLE
CONSOLE MAST
ASSEMBLY STEP 3
CONSOLE CABLE
COVER
* NOTE: Be careful not to pinch any
wires while assembling the masts.
ASSEMBLY COMPLETE!
SCREW (F)
15 mm
Qty: 4
HARDWARE BAG 3 CONTENTS :
SCREWS (F)
ROLLER END CAPS
Connect the CONSOLE CABLES and
carefully tuck wires in CONSOLE
MAST to avoid damage.
Note: Do not pinch console cable.
Be sure the console cable prongs
are aligned and the ends are tightly
seated into each other.
Attach CONSOLE CABLE COVER.
Slide the WATER BOTTLE HOLDER
down into the hole in the CONSOLE
and snap together.
A
B
C
* NOTE: There is no hardware bag
for Assembly Step 3.
Open HARDWARE BAG 3.
Fold up treadmill (see page 13 for
folding instructions).
NOTE: Lock latch must be securely
engaged before proceeding with
assembly.
Attach the right ROLLER END CAP
using 2 SCREWS (F).
Repeat on the other side.
A
B
C
D
