Triumph 45-6060W - Step 4: Install Electronic Scorer

PARTS REQUIRED:
2 pcs - H4 Phillips Round Head Screw
1 pc - P8 Electronic Scorer
1 pc - A5 A/C Adapter
STEP 4:

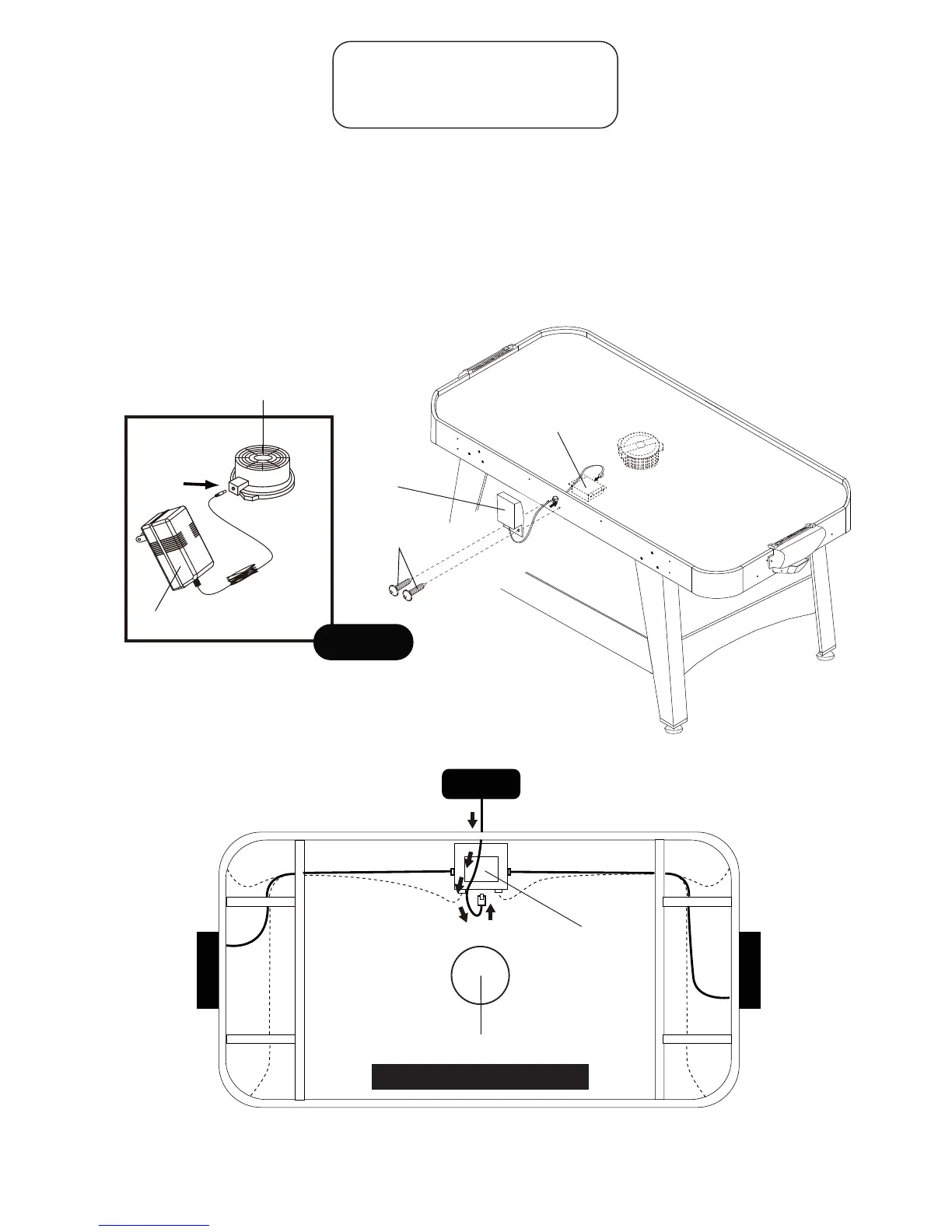

First, feed the plug from P8 Electronic Scorer through side apron and connect to underneath C3 Junction Box as shown
in FIGURE 4 and UNDERNEATH TABLE DIAGRAM.
Secure P8 Electronic Scorer using Pre-drilled holes with H4 Phillips Round Head Screws as shown in FIGURE 4.
Tighten, But do not strip out H4 Screws.
Install 3 “AAA” size batteries into C3 Junction Box.
Connect A5 A/C Adapter onto C1 DC Motor (underneath table) as shown.
©
2016 Escalade Sports
For Customer Service Call 1-888-996-2729
7
All Rights Reserved.
UNDERNEATH TABLE
C1 DC Motor
GOAL BOX
GOAL BOX
ELECTRONIC
SCORER
H4
P8
C3
Junction Box
(underneath table)
C1
DC Motor
(underneath table)
A5
FIGURE 4
C3 Junction Box
