Make sure the motorcycle is stabilised and adequately supported.
A correctly supported motorcycle will help prevent it from falling.
An unstable motorcycle may fall, causing injury to the operator or damage to the
motorcycle.
Drag Link Brackets
1. Position the drag link brackets to the lower crankcase. Fit the fixings but do not fully
tighten at this stage.
2. Position the drag link brackets to the upper crankcase. Fit the bolt from the right
hand side, fit a new flanged lock nut but do not fully tighten at this stage.

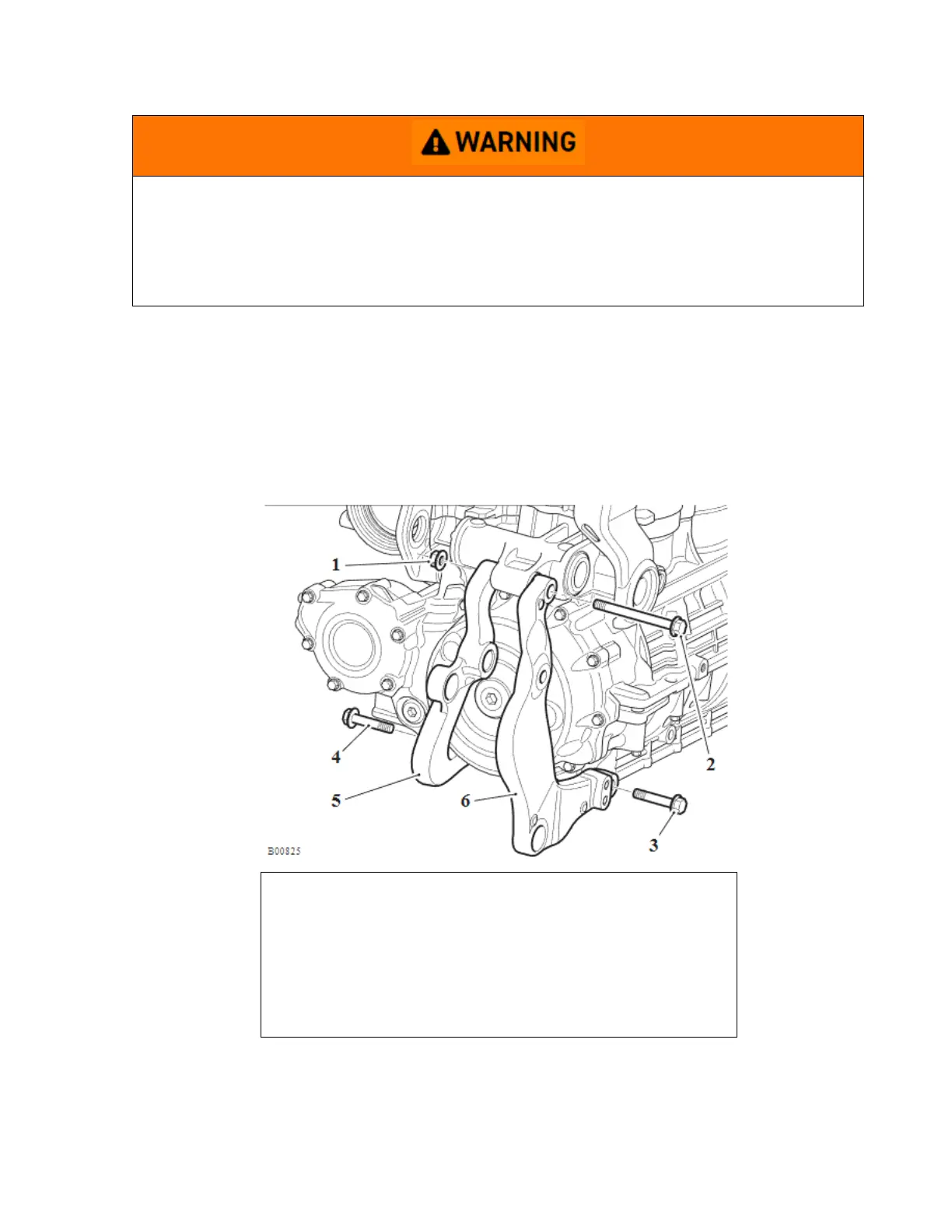

1. Flanged locknut
2. Bolt
3. Fixing (right hand bracket)
4. Fixing (left hand bracket)
5. Drag link left hand bracket
6. Drag link right hand bracket
