5. Tighten the drop link bracket fixings in the following sequence.
• Hold the flanged lock nut and tighten the upper bolt to 48 Nm.
• Right hand bracket lower fixing to 48 Nm.
• Left hand bracket lower fixing to 48 Nm.

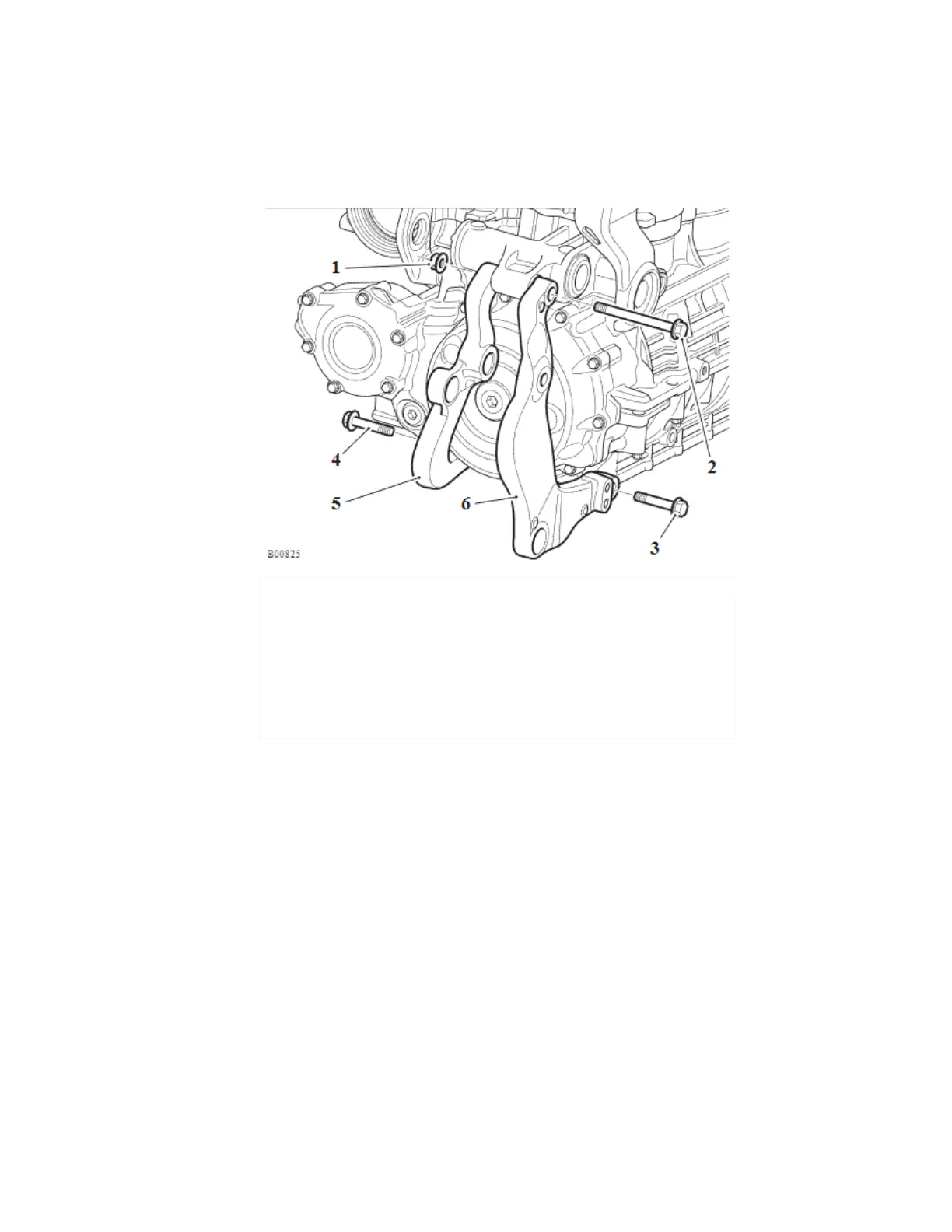

1. Flanged locknut
2. Bolt
3. Fixing (right hand bracket)
4. Fixing (left hand bracket)
5. Drag link left hand bracket
6. Drag link right hand bracket
6. Remove service tool T3880503 from the drag link brackets.
7. Fit the swinging arm (see Swinging Arm - Installation).
