Drag Link and Rocker Assembly

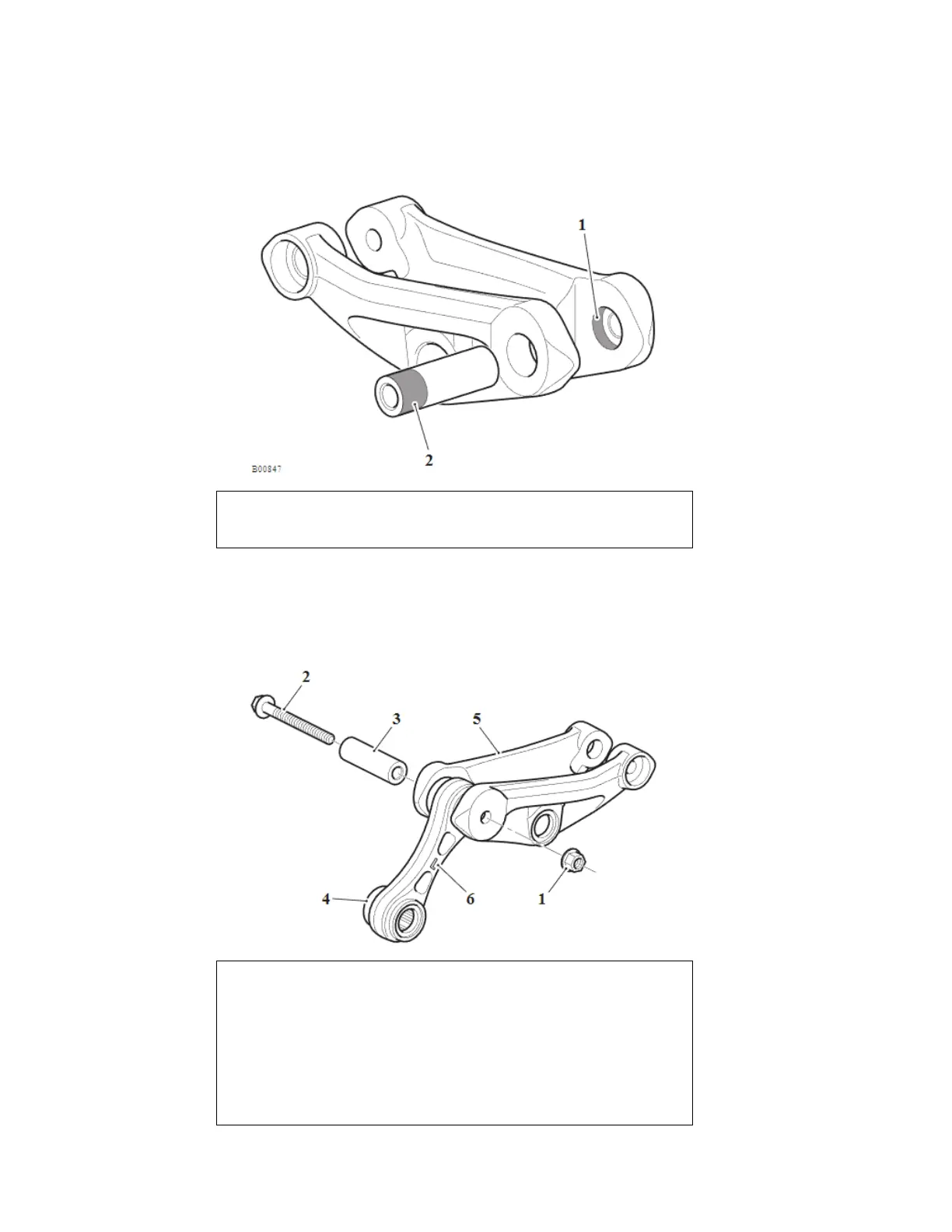

1. Apply a smear of proprietary copper based grease to the areas of the rocker and
sleeve as shown in the illustration below.
1. Copper grease area for rocker
2. Copper grease area for sleeve
2. Position the drag link to the rocker as noted for removal with the L on the drag link
facing the left hand side of the motorcycle, when fitted.
3. Fit the sleeve, bolt and new flanged lock nut.
4. Hold the flanged lock nut and tighten the bolt to 48 Nm.
1. Flanged locknut
2. Bolt
3. Sleeve
4. Drag link
5. Rocker
6. Letter L
