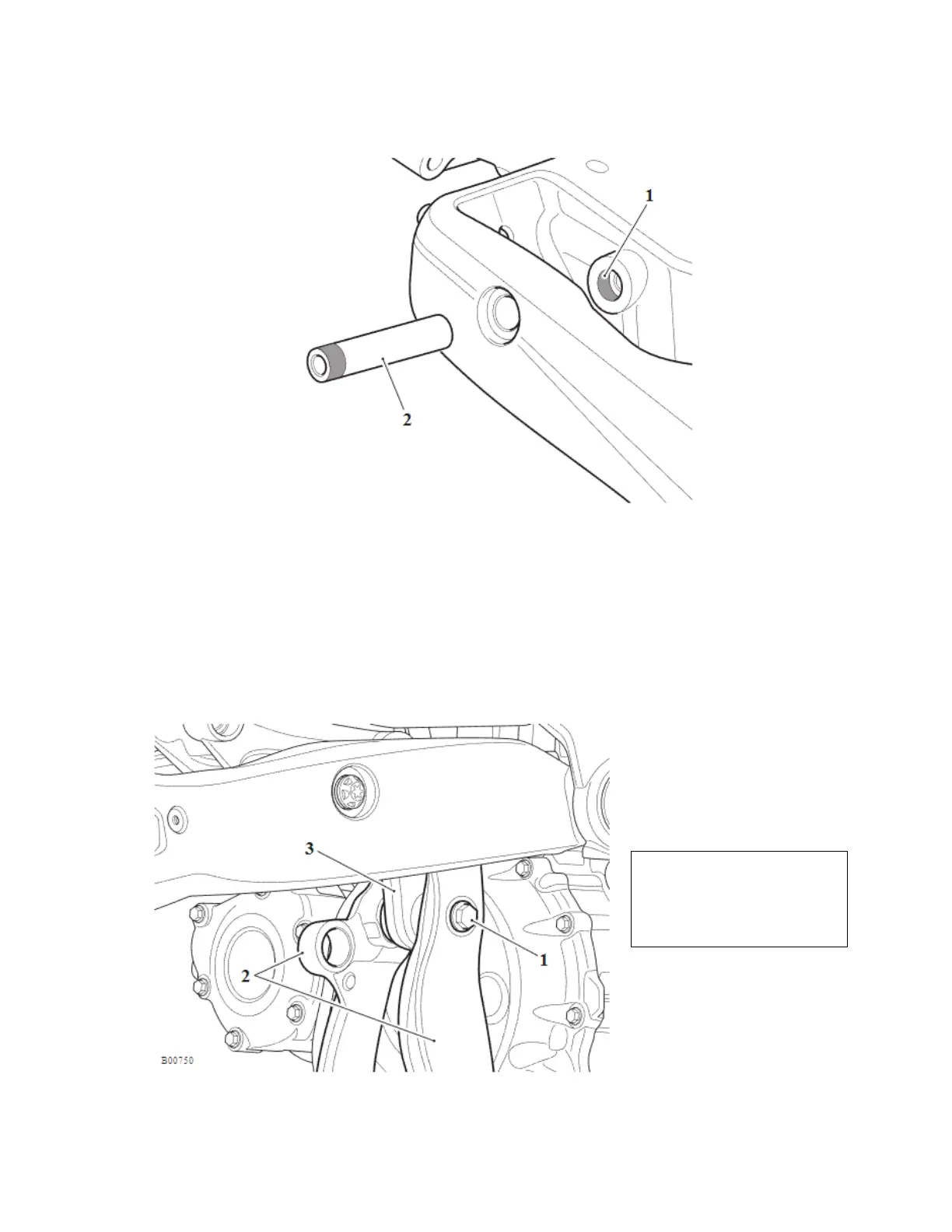

5. Apply a smear of proprietary copper based grease to the areas of the swinging arm
and sleeve as shown in the illustration below.
6. Position the drag link and rocker assembly to the swinging arm with the drag link to
the front of the swinging arm.
7. Fit the sleeve and bolt.
8. Tighten the bolt to 48 Nm.
9. Position the drag link to the drag link brackets, fit the bolt and new flanged lock nut.
10. Fit the sleeve to the right hand drag link bracket.
11. Lift the swinging arm, hold the flanged lock nut and tighten the bolt to 48 Nm.
