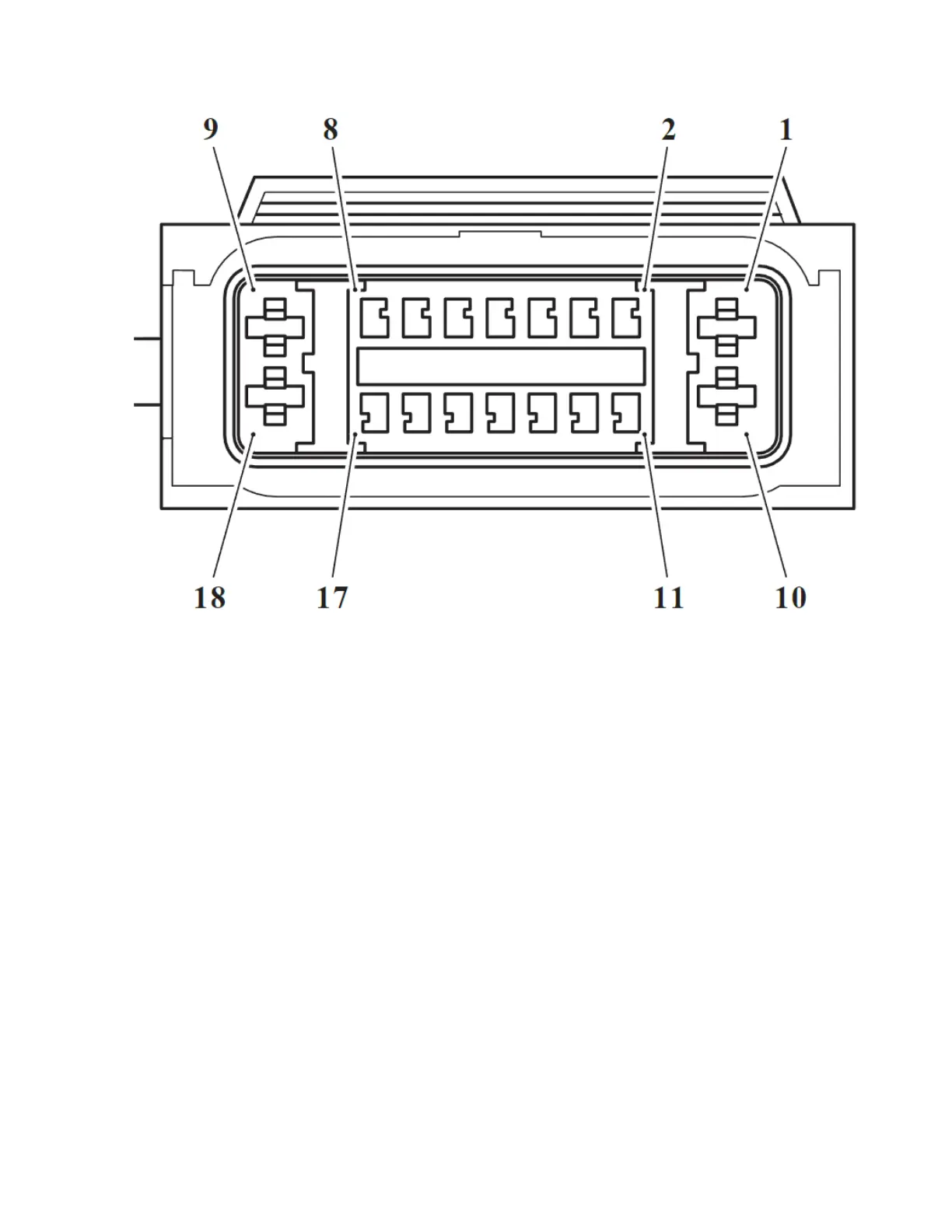

ABS ECM Connector Pin Numbering
The above illustration shows the pin numbering system used in the ABS circuit diagram.
As viewed on the mating face with the ABS ECM (as per the illustration), pins are
numbered from right to left with number one in the top right hand corner.
