Triumph Rocket 3 GT 2021 - Page 1095

1057
Test
Result
Action
4
Check cable for short circuit:
- ABS ECM pin 2 to ABS ECM pin 11
OK
Proceed to test 5
Short
Circuit
Check the battery
charging circuit. Locate
and rectify fault,
proceed to test 5
5
Clear fault code and test ABS to verify fault
cleared.
OK
Action complete - quit
test
Fault still
present
Contact Triumph
service

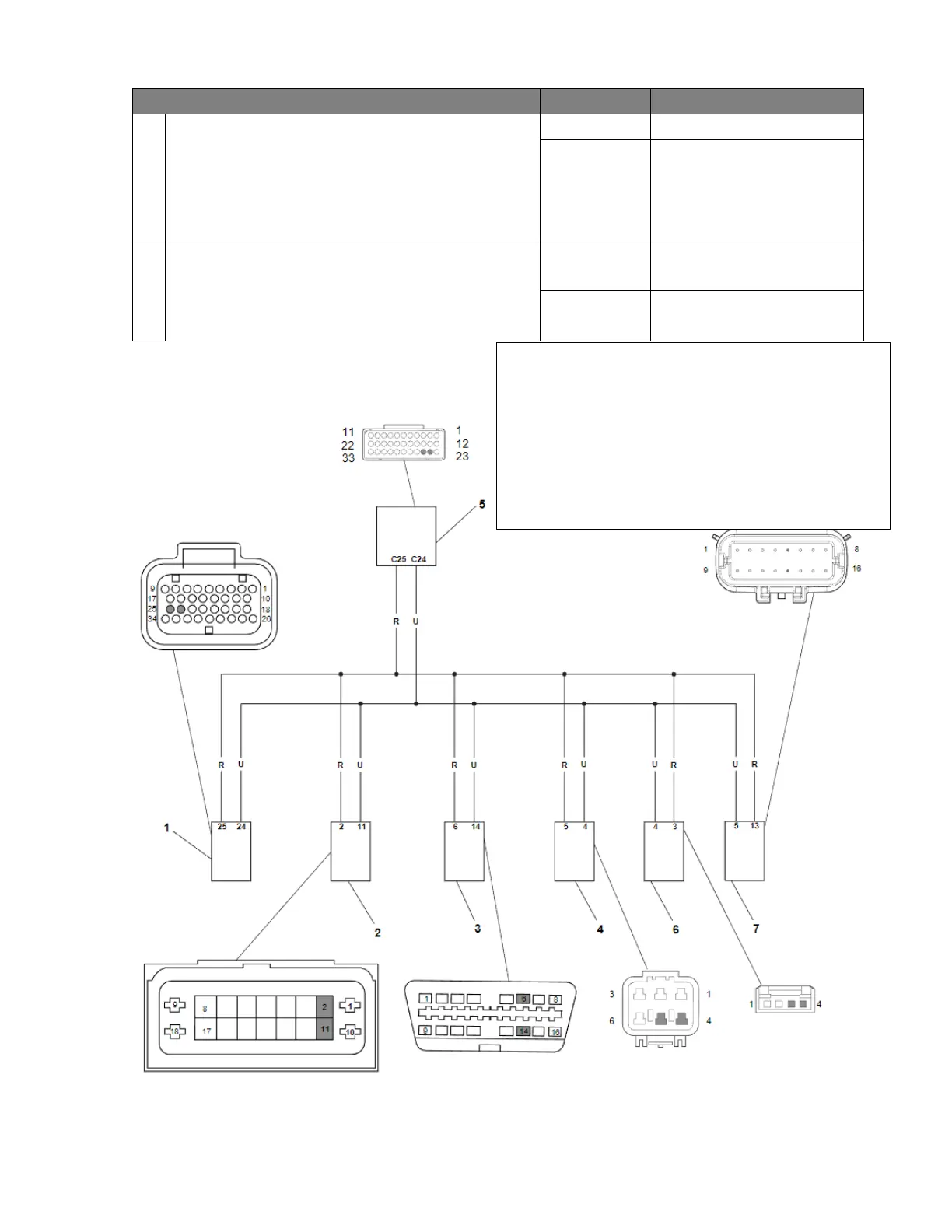

Circuit diagram
1. Instruments
2. ABS Control Module
3. Diagnostic Connector
4. Steering lock inline
5. Engine ECM Connector
6. Bluetooth Module
7. Keyless inline
