10. Visually check the clearances between the calipers body and brake disc in the four
locations shown below.
1. Caliper body
2. Brake disc
11. Slide the calipers body inwards or outwards against their fixings as required to
achieve the most equal clearances possible on either side of the brake disc.
12. Holding the calipers in position against their mounting fixings, tighten the fixings to
45 Nm.

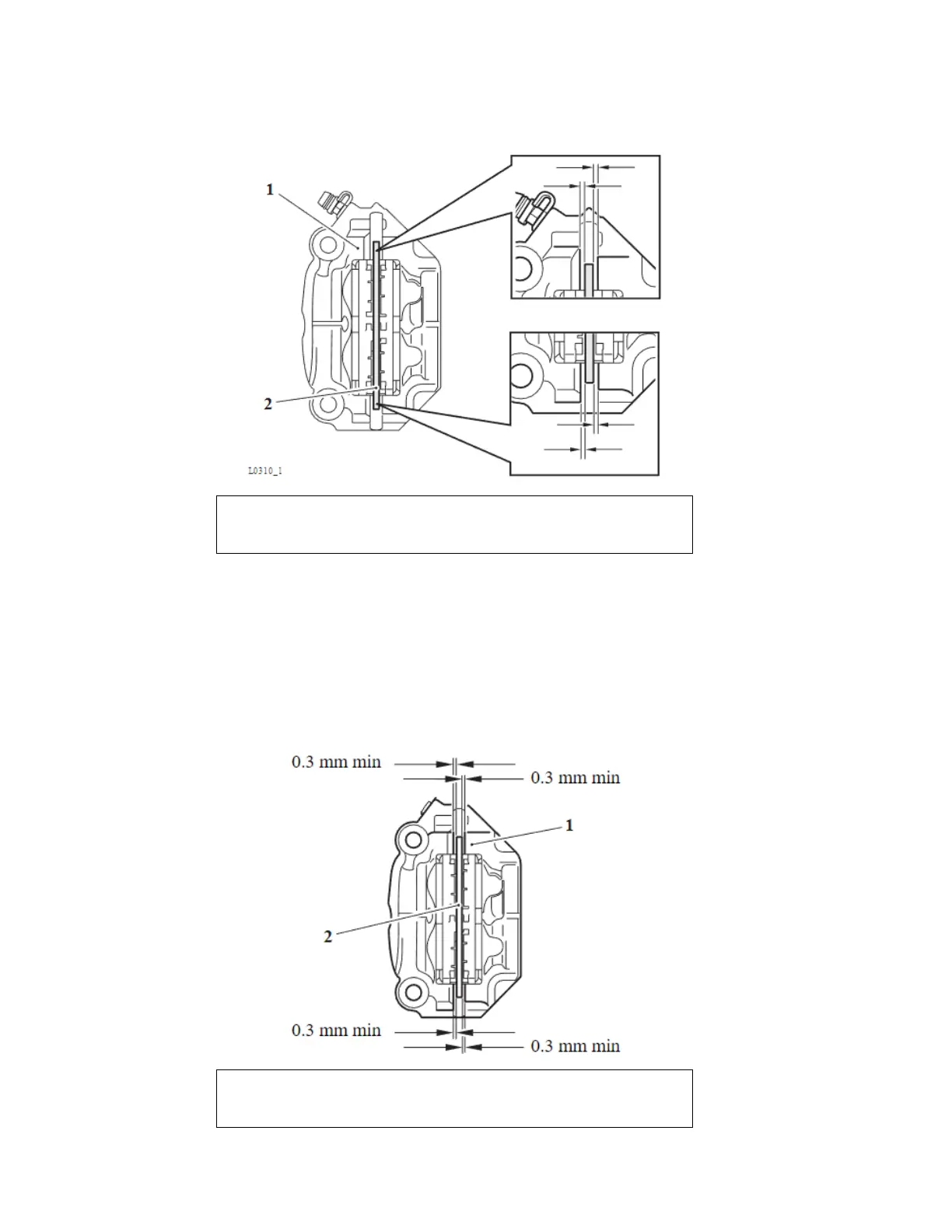

13. Using feeler gauges, measure the gap between the front brake calipers and the brake
disc at the four measurement points shown in the following illustration. Minimum
gap to be 0.3 mm.
1. Front brake caliper
2. Front brake disc
