1077

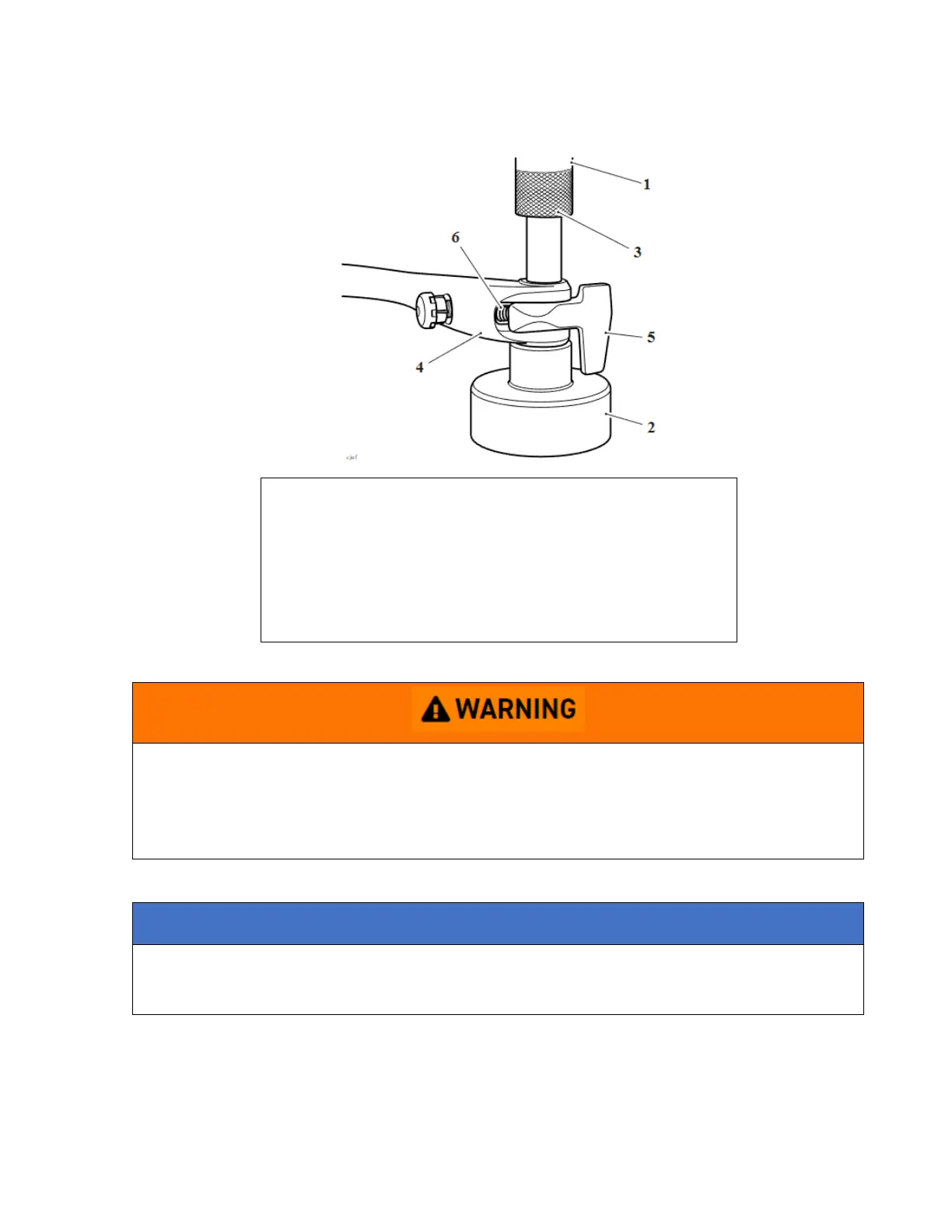

6. Position the mandrel and extractor to the brake lever and press out the pivot sleeve
from the brake lever assembly.
1. Mandrel
2. Support piece
3. Extractor
4. Front brake lever
5. Pivot assembly
6. Return spring
7. Retain the brake lever pivot sleeve for reuse during assembly.
Always wear eye, hand and face protection when separating brake lever components.
Uncontrolled release of the brake lever components may cause the spring to become
detached during dismantling. Flying springs may cause injury to eyes, face and any
unprotected parts of the body.
Note the orientation of the return spring, push rod and brake lever pivot for
installation.
8. Carefully remove the extractor from the brake lever assembly.
9. Collect the brake lever pivot sleeve from the support piece.
10. Carefully detach the lever from the pivot assembly.
