If adjustment is required, use the original fixing for the selection of the shim. Fit a new
fixing when the new shim has been selected and fitted.
1. Position the wheel speed sensor and shim to the fork leg, as noted for removal. Fit
the original fixing and tighten to 9 Nm.
2. Route the harness as noted for removal and connect the wheel speed sensor
electrical connector to the main harness.
3. Attach the sensor harness to its clips on the left front brake line.

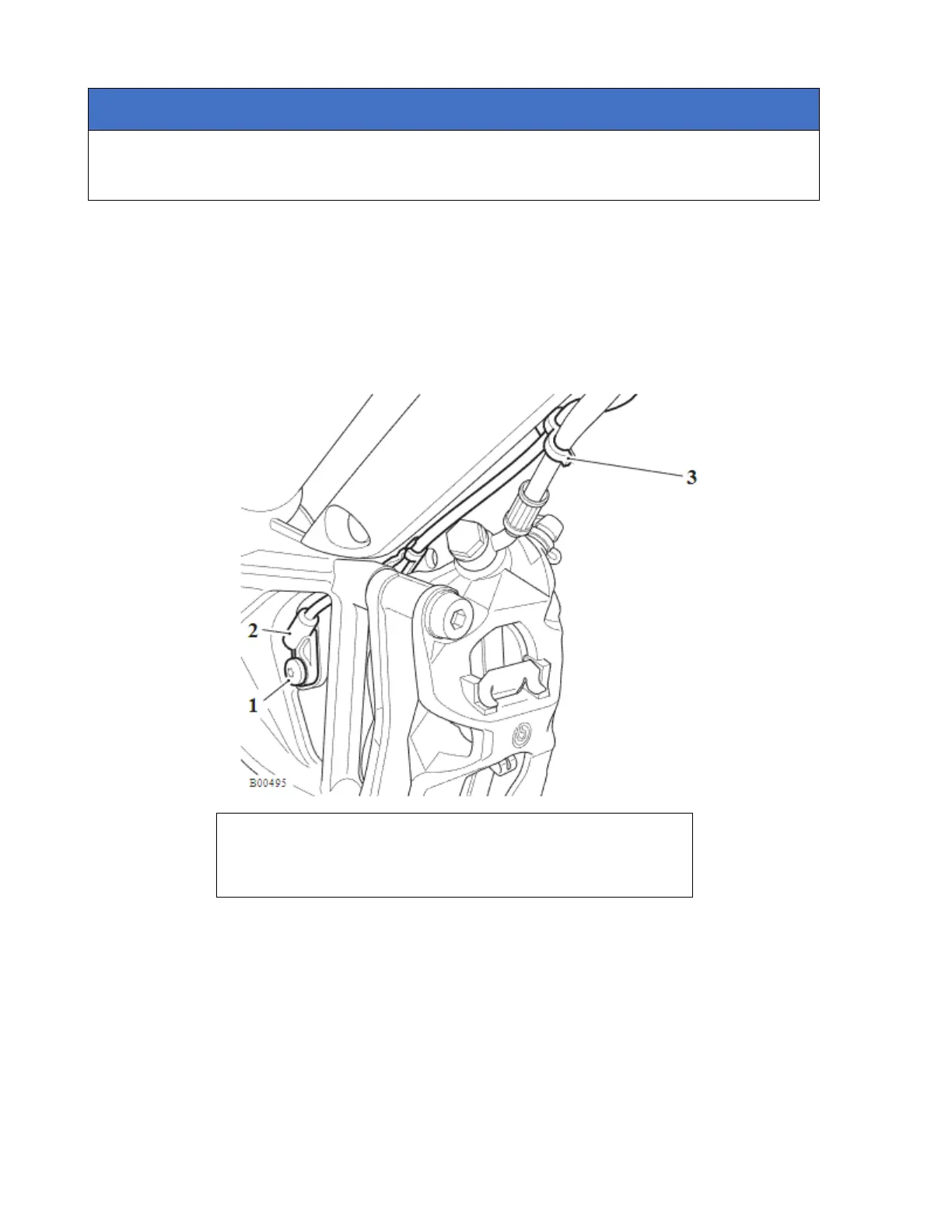

1. Fixing
2. Shim
3. Clip (one of three)
4. The air gap between the wheel speed sensor and the pulser ring must be between
0.37 mm and 1.23 mm. Check, and if necessary, adjust the air gap (see Air Gap
Measurement).
5. If the air gap measurement is between 0.37 mm and 1.23 mm, remove the original
fixing, fit a new fixing and tighten to 9 Nm.
