1. Fit the rear wheel speed sensor and tighten its new fixing to 9 Nm.
1. Fixing
2. Wheel speed sensor
2. Connect the rear ABS wheel speed sensor to the main harness.
3. With the harnesses and brake line routed as noted for removal, fit the harness guide
and secure with a new fixing. Do not fully tighten at this stage.
4. Attach the rear brake line to the harness guide on the swinging arm.

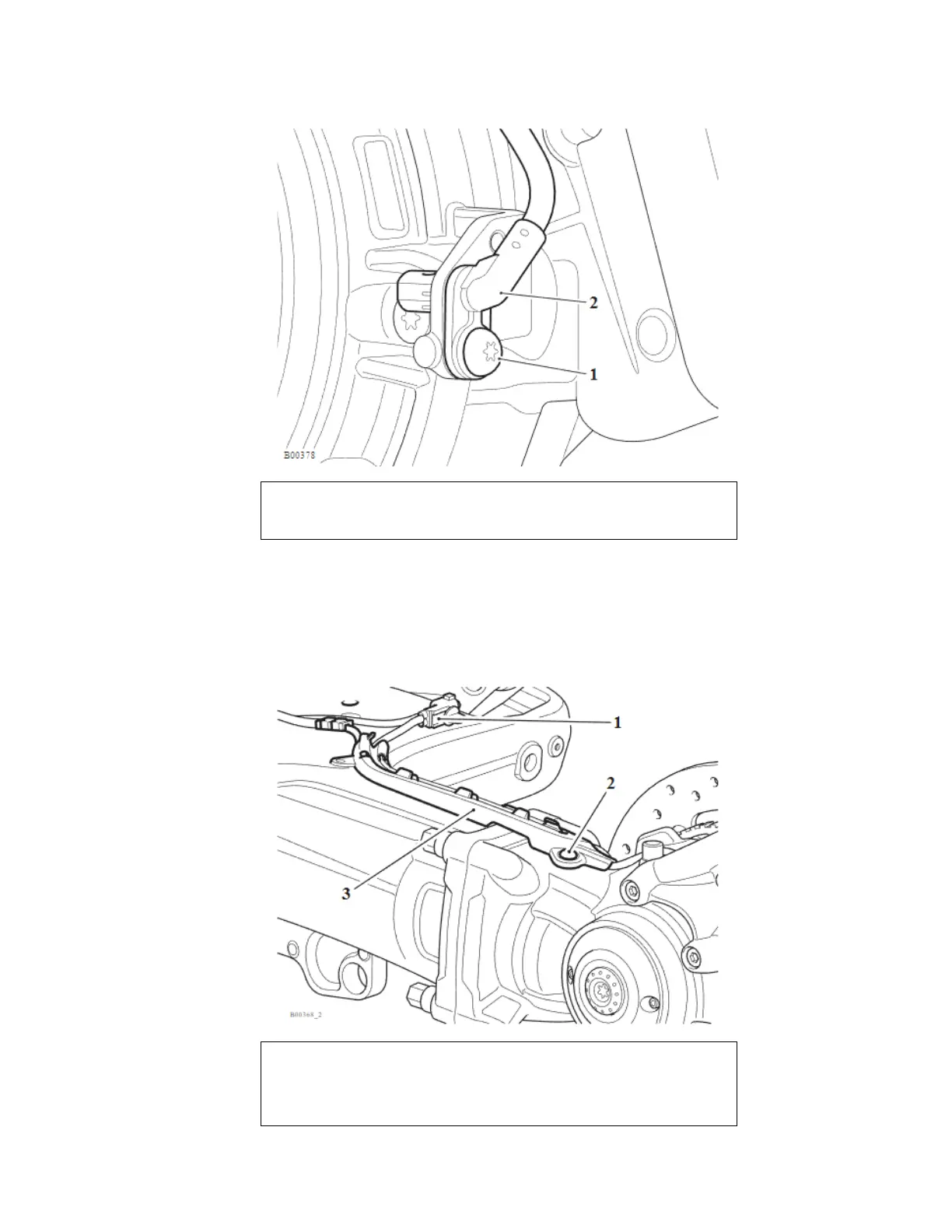

1. ABS wheel speed sensor connector
2. Fixing
3. Harness guide
