1165
NOTICE
Note there is a snap ring that secures the splines of the cush drive to the splines of the
bevel box.
Note the orientation of the cush drive rubber for installation.
Note the position of the conical washer for installation.
Note that there are five dowels on the bearing housing for installation.
6. Remove the cush drive rubber.
7. Pull the cush drive inner out from the bevel box.
8. Collect the conical washer from the cush drive.

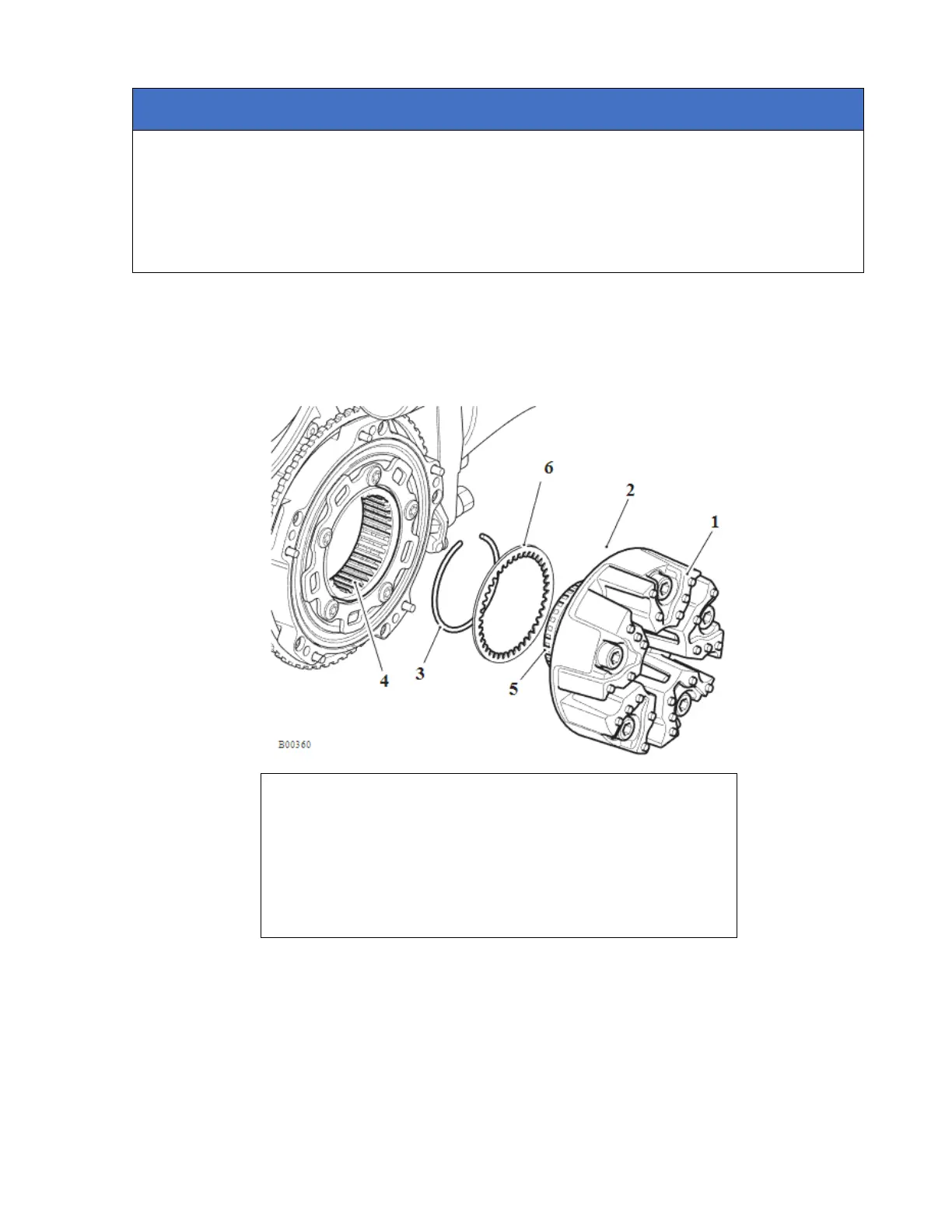

1. Cush drive rubber
2. Cush drive inner
3. Snap ring
4. Splines (bevel box)
5. Splines (cush drive)
6. Conical washer
9. Release the fixings and remove the bearing retaining plate. Discard the fixings.
