1. If necessary fit new stud(s) to the rear bevel box and tighten to 56 Nm.

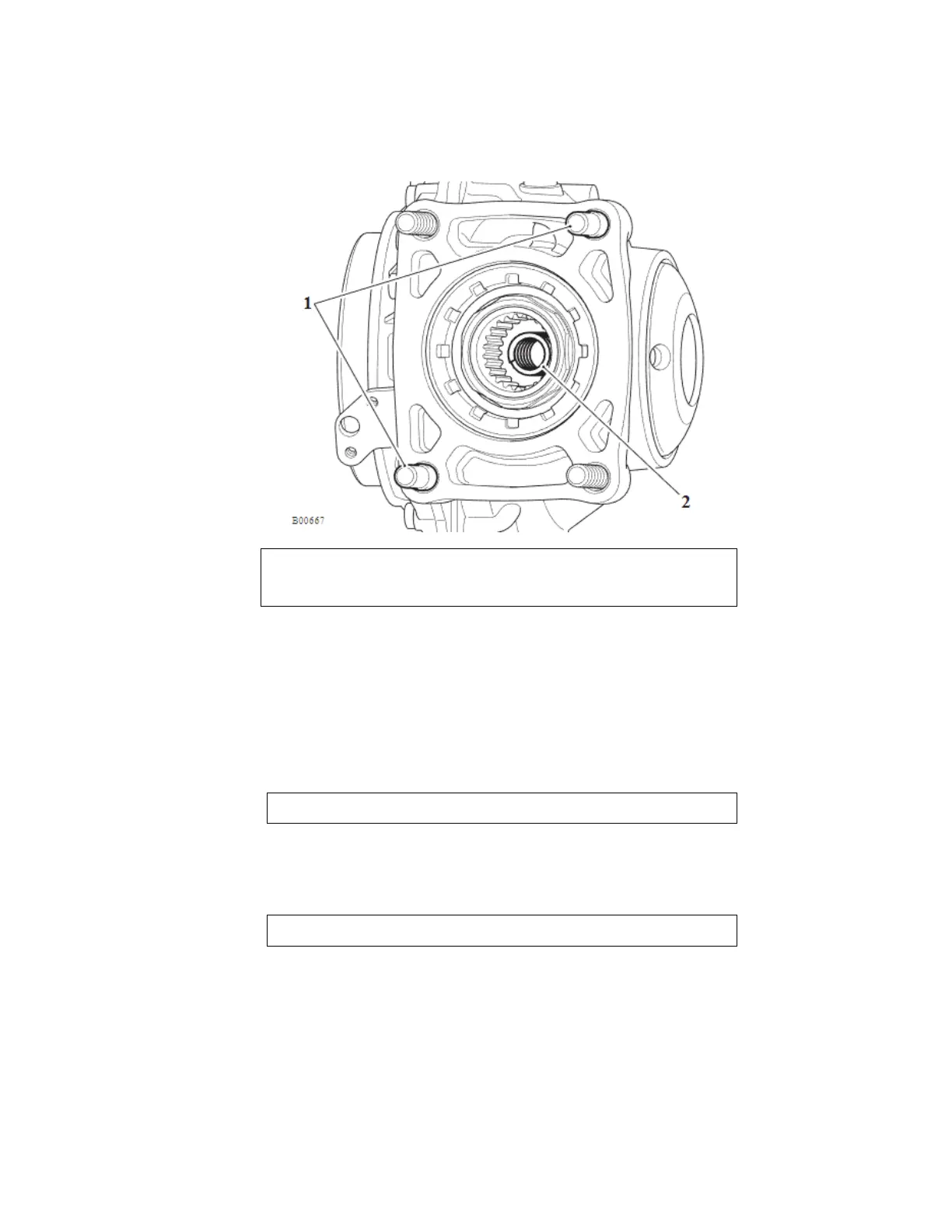

2. check that the two hollow dowels and the spring for the drive shaft are fitted to the
final drive as shown in the illustration below.
1. Hollow dowels
2. Spring
3. Align the rear bevel box to the swinging arm and the drive shaft splines. Fit the
hardened washers and new fixings.
4. Tighten the rear bevel box fixings in the following two stages (swinging arm removed
for clarity):
Stage 1
5. Tighten the fixings in the sequence shown to 20 Nm.
Stage 2
