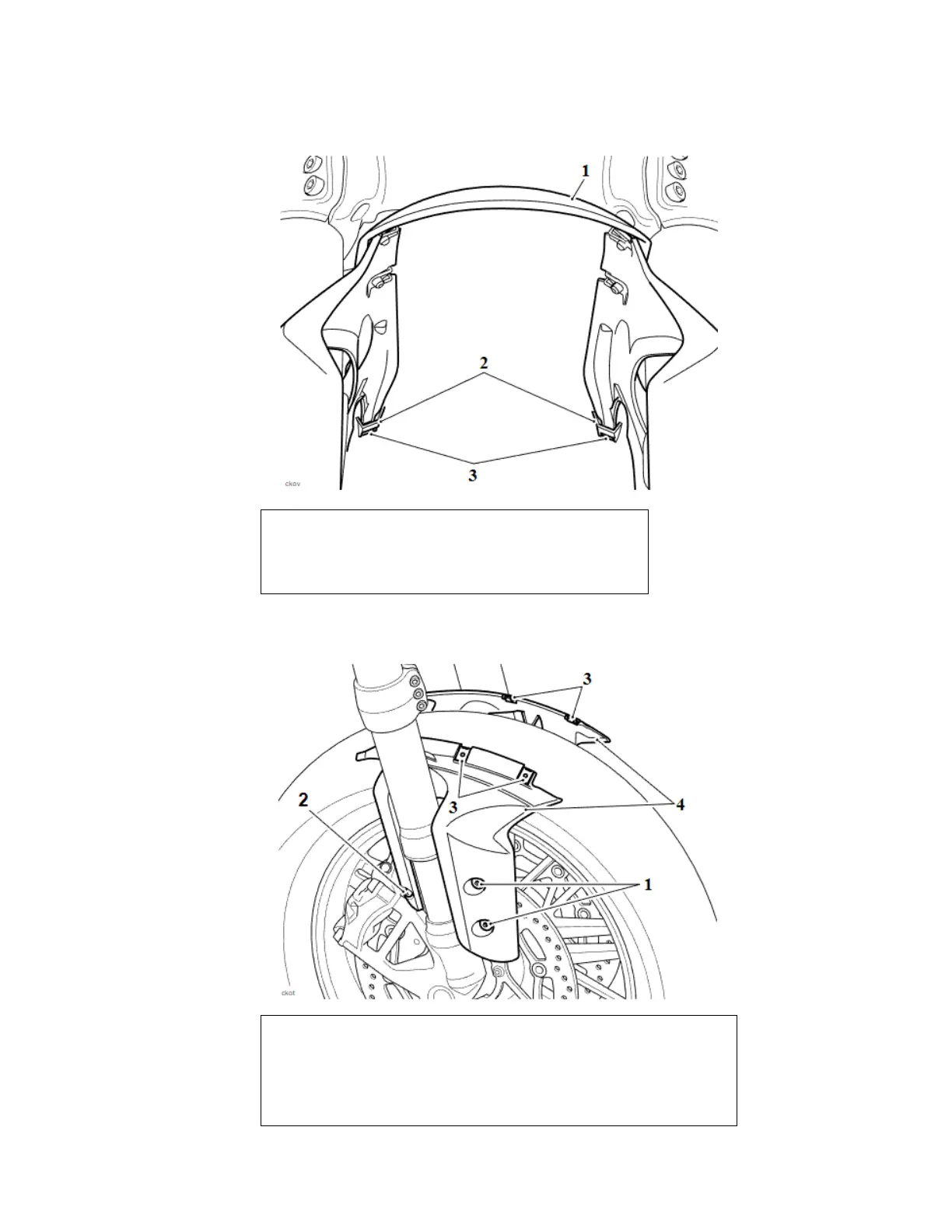

1. Slide the front mudguard rearward and release the tangs from the slots on the
mudguard brackets.
1. Front mudguard
2. Slots
3. Tangs
1. Remove the fixings and remove the mudguard brackets.
2. If required remove the captive nuts.
1. Front fixing (right hand shown)
2. Rear Fixing (right hand shown)
3. Captive nuts
4. Front mudguard bracket (right hand shown)
