4. Slide the mudguard forward onto the brackets. Make sure the slots on the underside
of the mudguard fit on to the brackets tangs.
5. Position the mudguard to the brackets and fit the fixings to the captive nuts, do not
fully tighten at this stage.

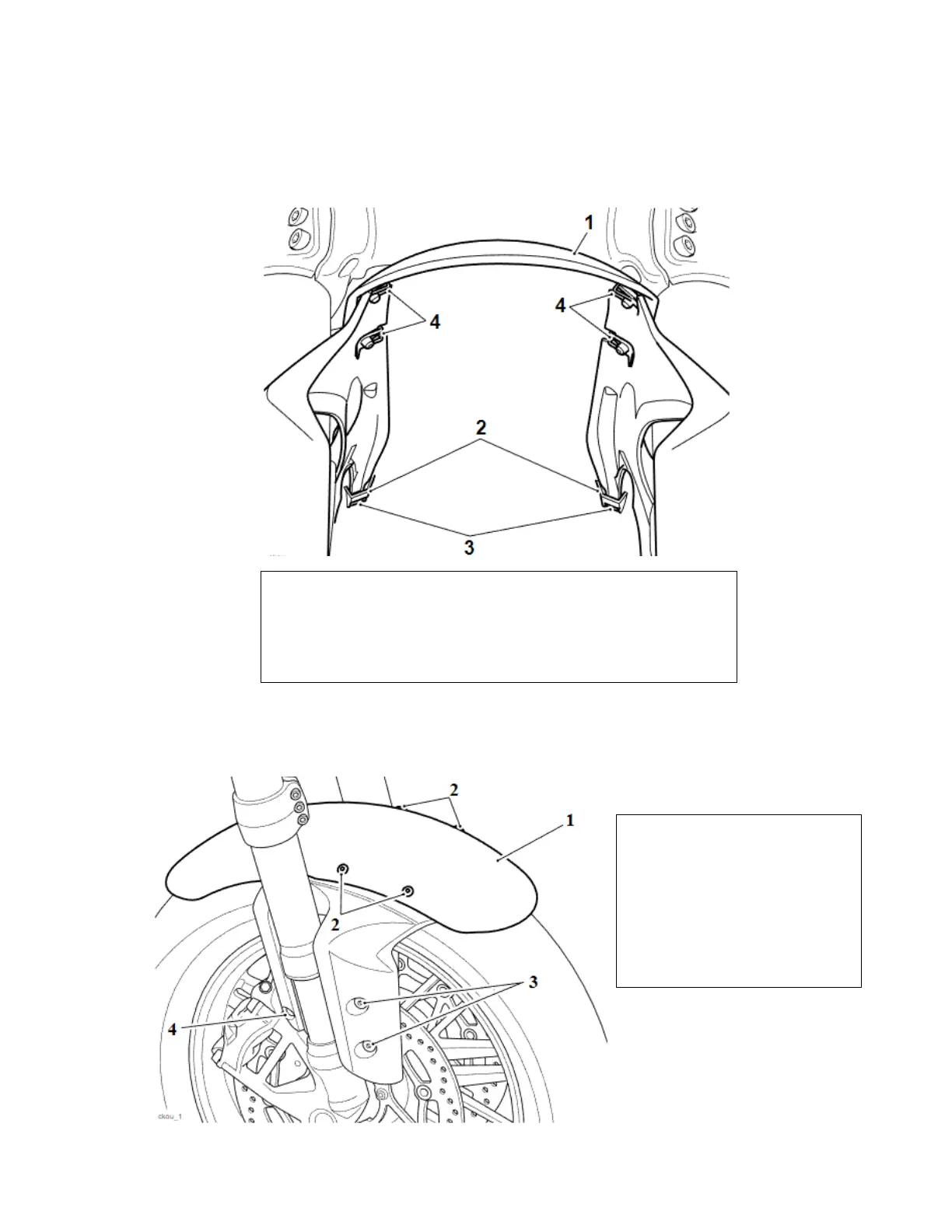

1. Front mudguard
2. Slots
3. Tangs
4. Captive nuts
6. Tighten the mudguard fixings to 3 Nm.
7. Tighten the left and right hand mudguard brackets front fixings to 6 Nm and the rear
fixing to 3 Nm.
