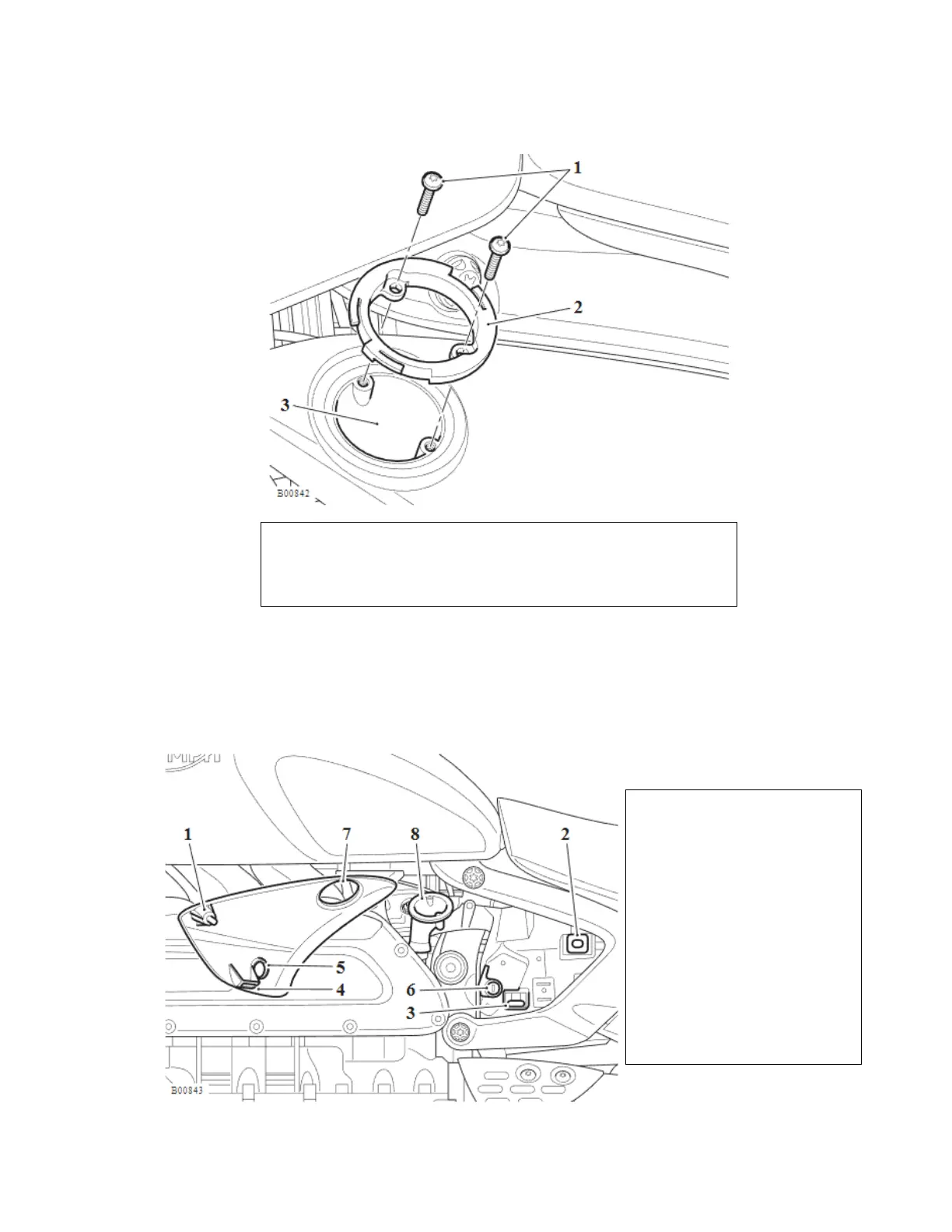

2. Remove the engine oil dipstick.
3. Release the fixings and remove oil filler tube clip.
1. Fixings
2. Clip
3. Oil filler tube
4. Grasp the panel firmly in both hands and gently pull the rear edge of the panel away
from the motorcycle until the spigot is away from the retaining grommets (leaving
the grommets in place).
5. Move the side panel clear of the seat lock and lift upwards away from the side panel
locating tang.
1. Spigot
2. Grommet
3. Side panel locating
tank
4. Side panel locating
slot
5. Seat lock hole
6. Seat lock
7. Oil filler tube hole
8. Oil filler tube
