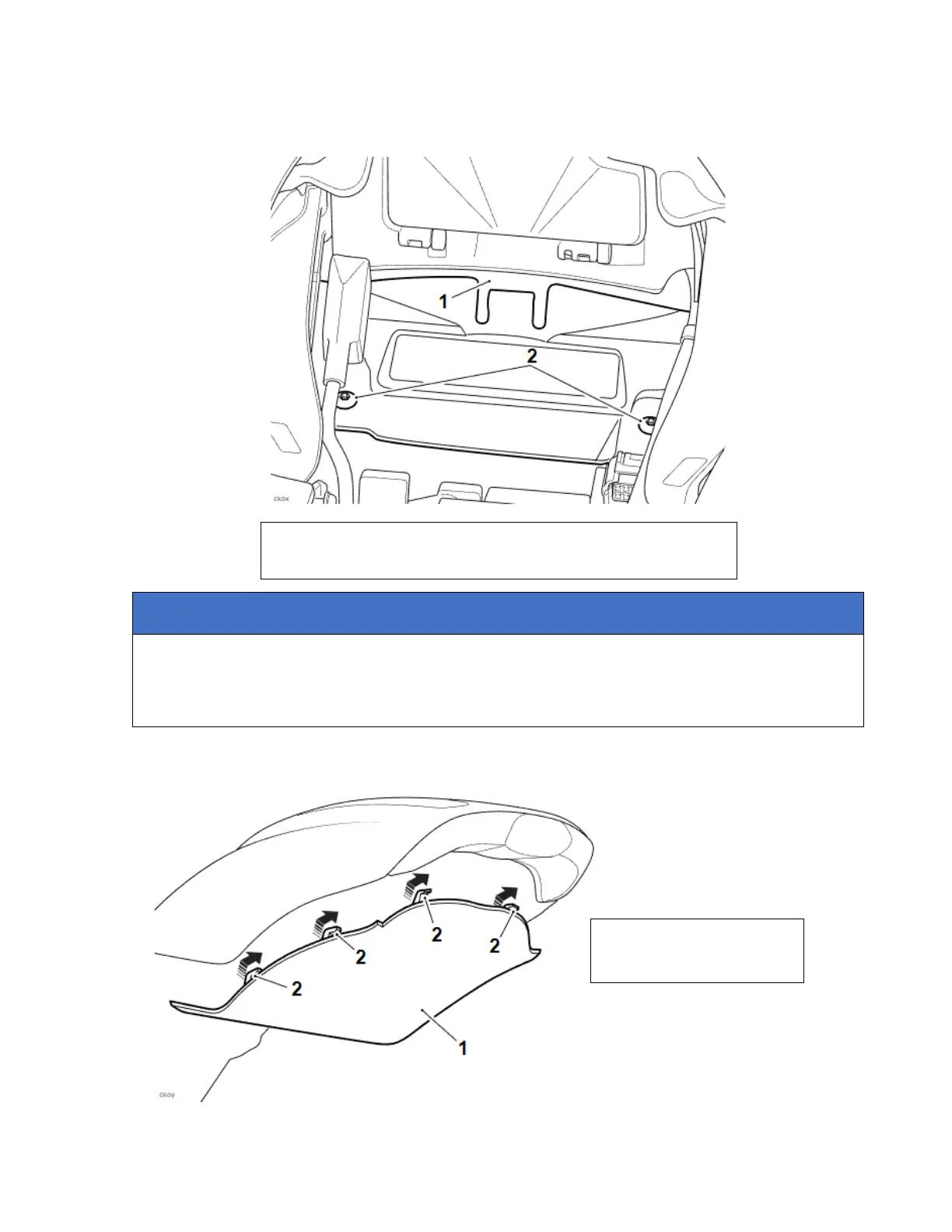

1. If closed, open the passenger left and right hand footrests.
2. Remove the fixings securing the undertray to the battery box.
1. Undertray
2. Fixings
NOTICE
There are two retaining lugs on the either side of the undertray that locate into the
rear mudguard left and right hand carriers.
There are two retaining lugs at the rear of the undertray that locate into the rear light.
3. Lower the front of the under tray and slide forwards to release the retaining tabs and
remove the tray.
1. Rear Undertray
2. Tabs
