3. Prior to fitting the side stand make sure the pivot pin and the bushes in the side
stand are clean and free from grease.
4. Position the side stand to its mounting bracket and insert the pivot pin.
5. Fit a new E-clip to secure the pivot pin.
Wear hand, eye and face protection when unhooking the stand spring. Take great care
to minimise the risk of personal injury and loss of components.
6. With the side stand in the up position, hook the spring onto its bracket lug then
carefully hook it onto the side stand lug.

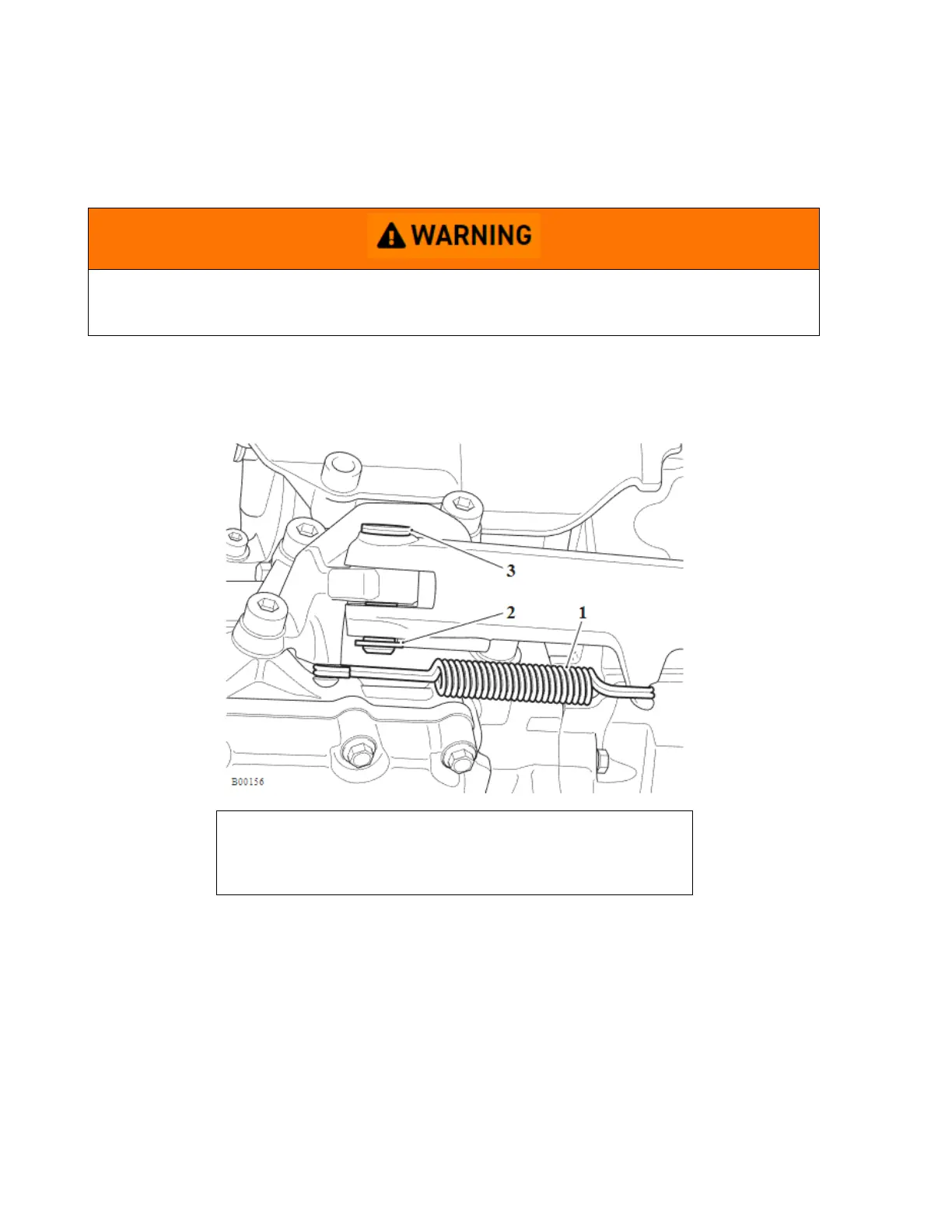

1. Spring
2. E-clip
3. Pivot pin
7. Route the side stand switch harness as noted for removal and connect to the main
harness.
8. Fit the starter motor cover tighten the M6 x 20 mm fixings to 9 Nm.
