NOTICE
Make sure the harness and harness connectors are refitted as noted during removal.
1. Fit the rear subframe front pieces. Fit new lock nuts to the upper fixing. Do not fully
tighten the fixings at this stage.

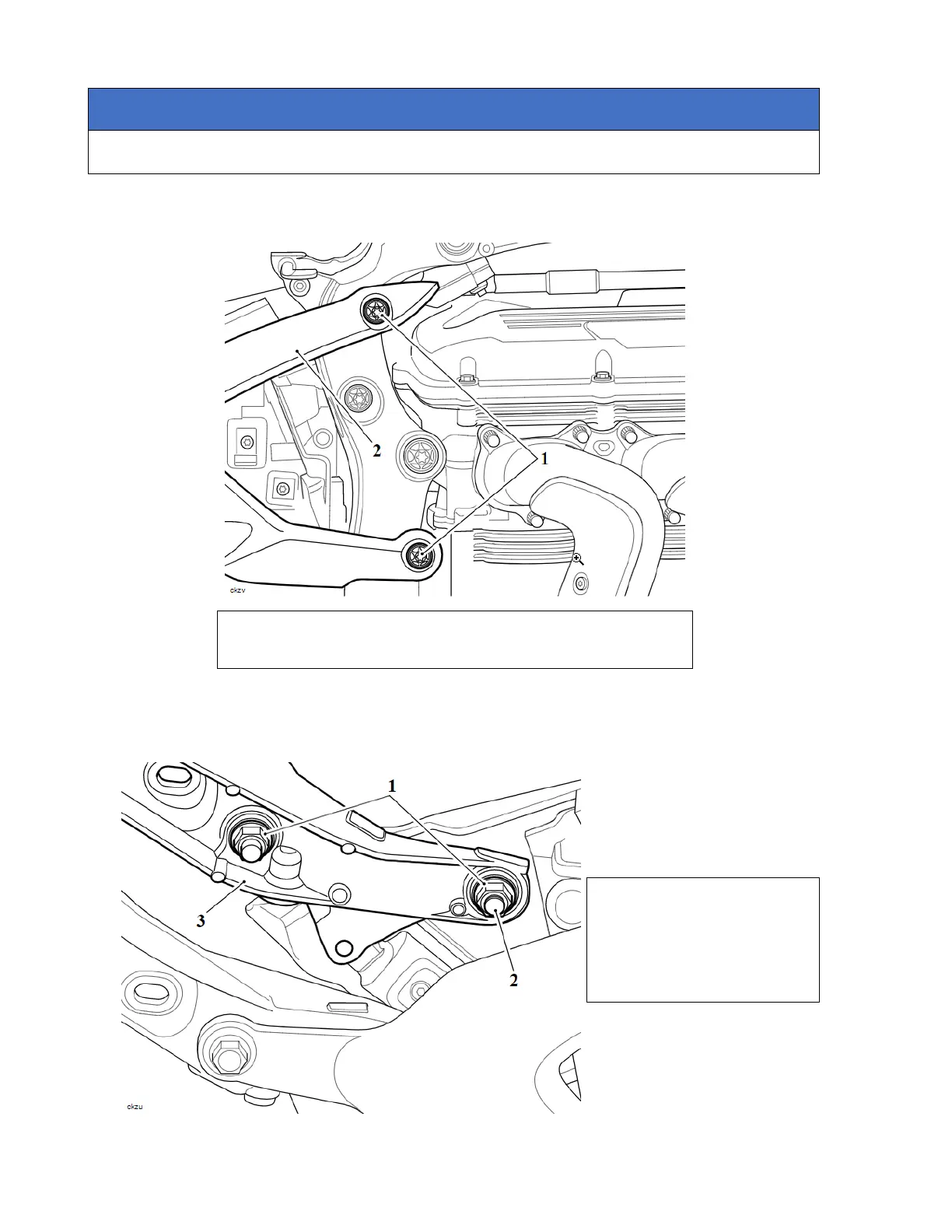

1. Fixings
2. Front pieces (right hand side shown)
2. If the stud for the rear pieces has been loosened or removed, fit new stud(s) to the
front pieces and tighten to TBA.
3. Fit the rear subframe rear pieces. Do not fully tighten at this stage.
1. Lock nut
2. Stud
3. Rear piece (left hand
side shown)
