Test
Result
Action
3
Check fuse integrity
Fuse box, fuse 1
OK
Proceed to test 4
Faulty
Replace fuse(s), proceed to
test 4
4
With Ignition 'ON', check Voltage
at:
- Keyless ECM pin 12
- Keyless ECM pin 4
Sane as
across
battery
Voltage
Proceed to test 5
Less than
across
battery
Voltage
Locate and rectify wiring fault,
proceed to test 5
5
Reconnect harness, clear fault code
and run engine to verify fault
cleared.
OK
Action complete – quit test
Fault still
present
Contact Triumph service

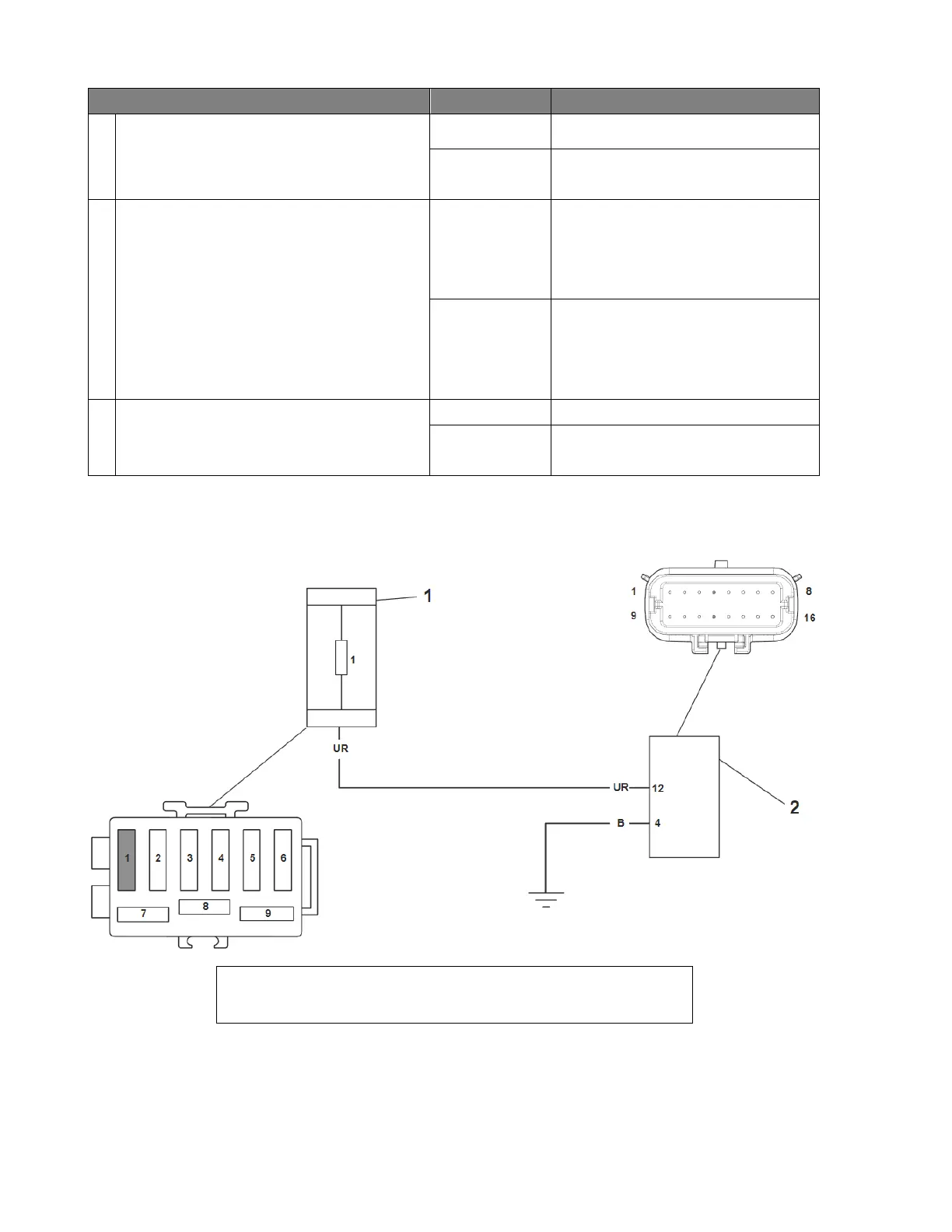

Circuit diagram
1. Fuse Box
2. Keyless ECM
