3. Disconnect the two handlebar subharness connectors and the twist grip position
sensor connector from the main harness.
4. Cut the cable ties securing the harness to the flyscreen mounting.
5. Release the fixings and detach the flyscreen mounting from the front subframe.

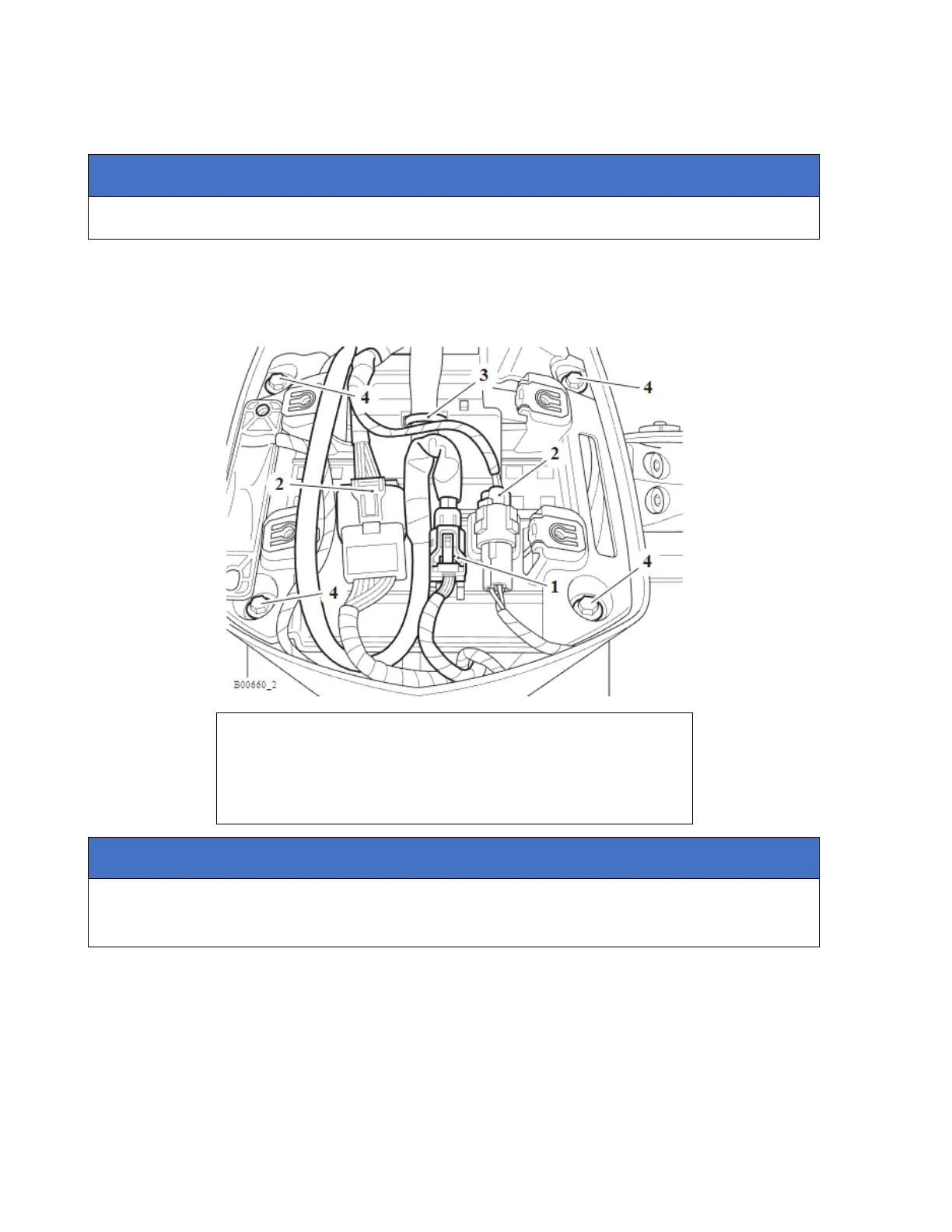

1. Twist grip position sensor connector
2. Handlebar sub harness connectors
3. Cable tie (one of two shown)
4. Flyscreen mounting fixings
Note the routing of the headlight harnesses for installation.
The main harness for the right hand headlight can be identified by the red tape on it.
