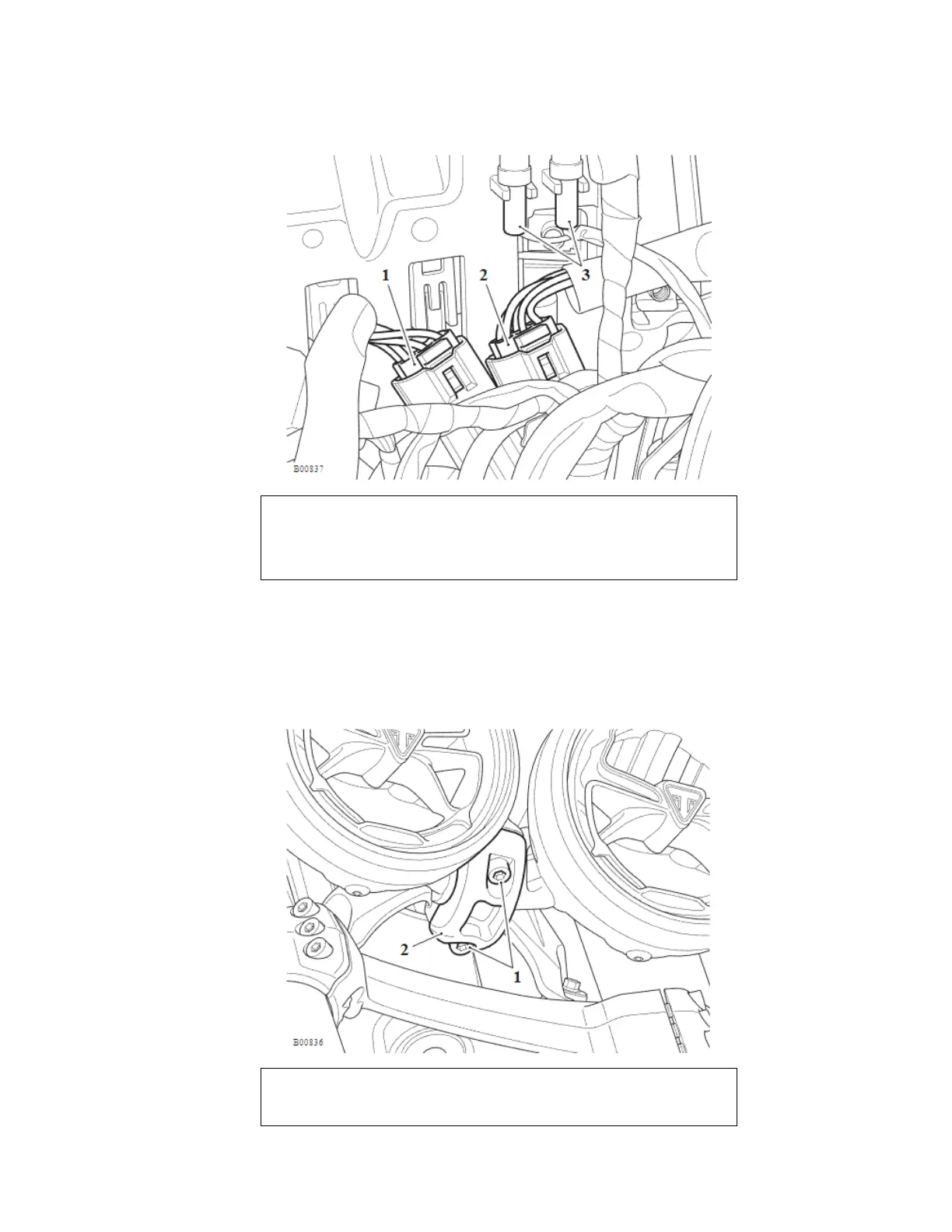

6. Turn the flyscreen mounting over and disconnect the headlight connectors from the
main harness.
1. Left hand headlight connector
2. Right hand headlight connector
3. Right hand direction indicator connectors
7. Detach the headlight leads from the S-clips on the subframe.
8. Loosen the clamp and tilt the headlight assembly upwards for access to the headlight
LED unit retaining fixing. Tighten the headlight bracket fixings to, front one first, 15
Nm.
1. Fixings
2. Clamp
