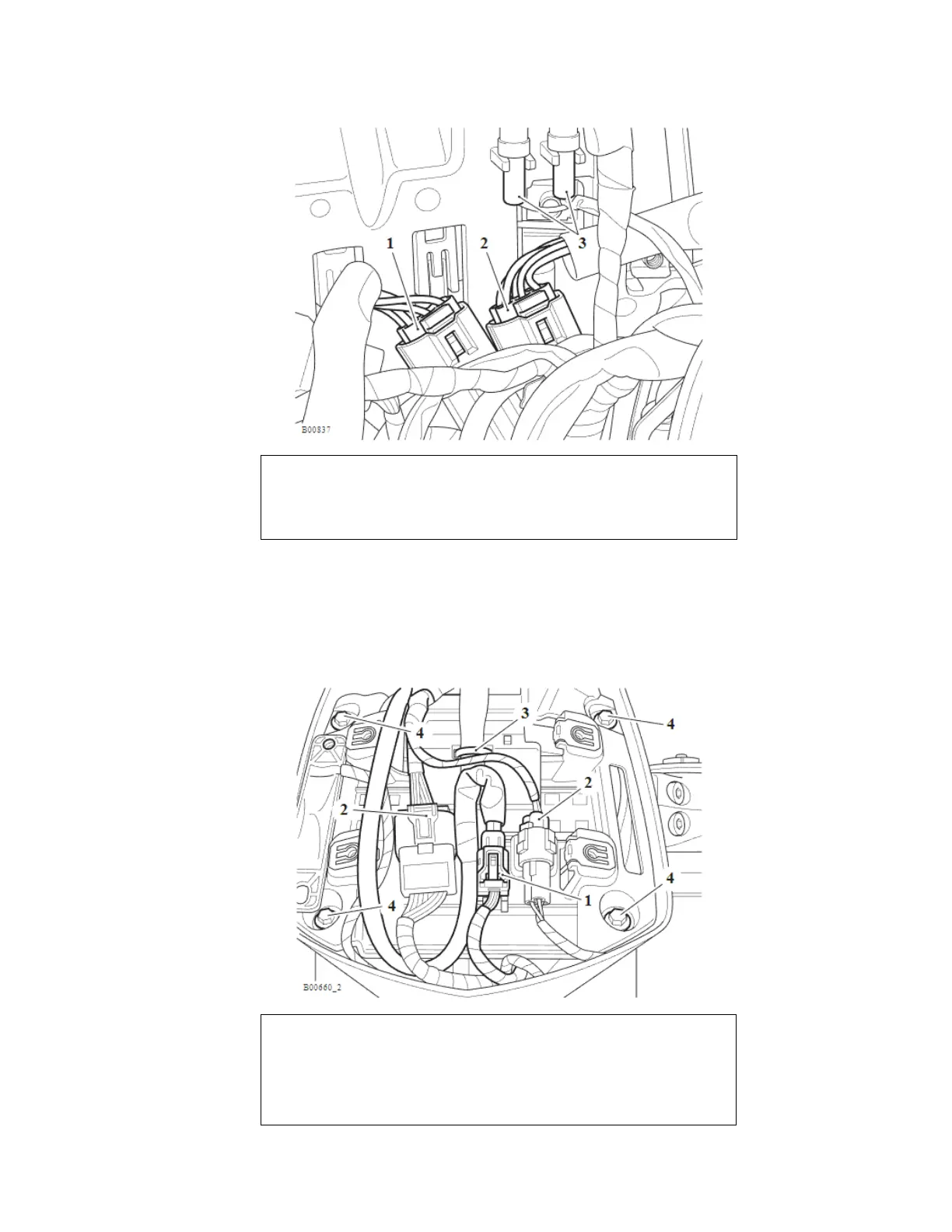

10. Connect the headlight harnesses to the main harness.
1. Left hand headlight connector
2. Right hand headlight connector
3. Right hand direction indicator connectors
11. Connect the two handlebar subharness connectors and the twist grip position sensor
connector to the main harness.
12. Secure the harness to the underside of the flyscreen mounting with two cable ties, as
noted for removal.
13. Fit the flyscreen mounting to the front subframe and tighten the fixings to 5 Nm.
1. Twist grip position sensor connector
2. Handlebar sub harness connectors
3. Cable tie (one of two shown)
4. Flyscreen mounting fixings
