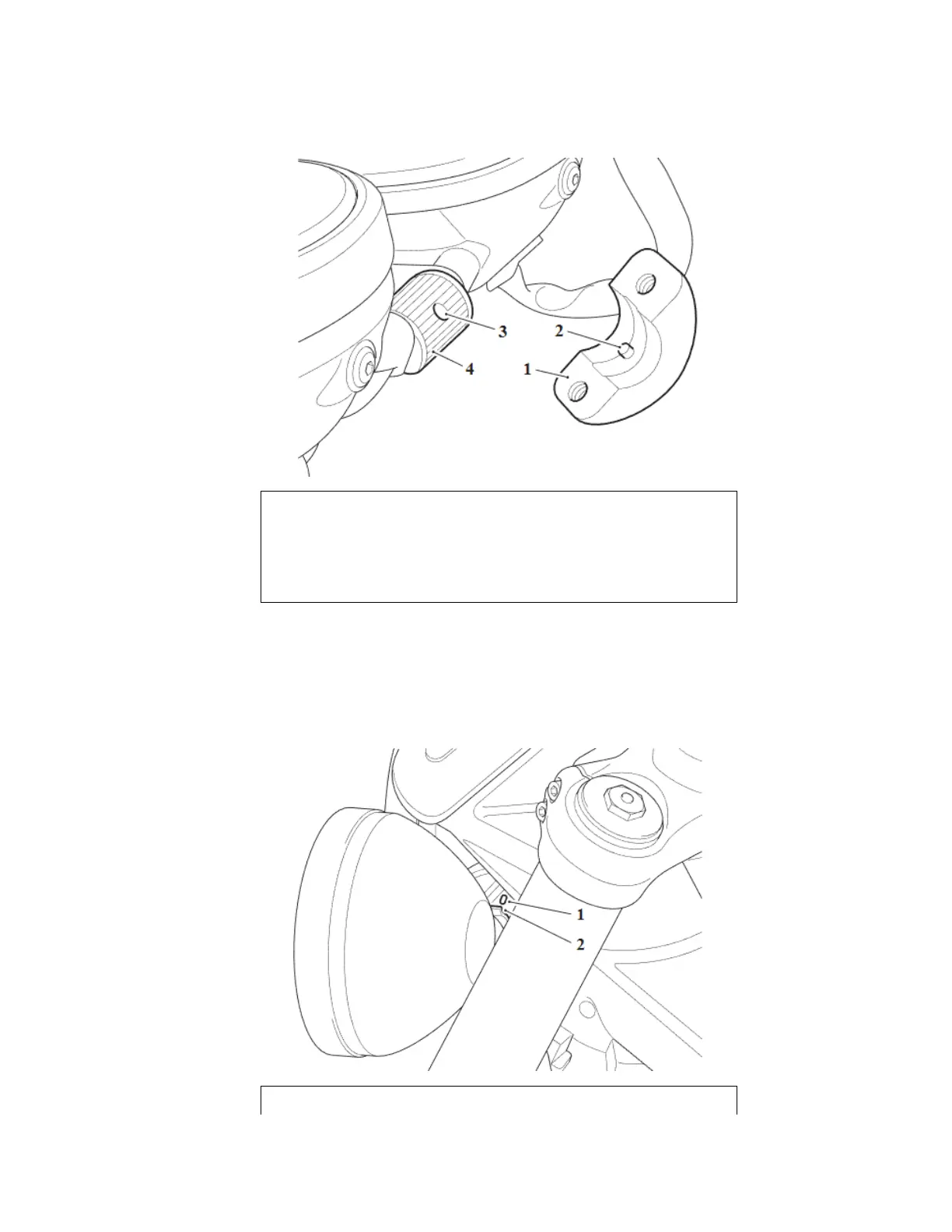

1. Fit the headlight clamp to the headlight assembly as noted for removal. Make sure
the locating lug on the clamp fit into the hole in the headlamp bracket.
1. Clamp
2. Locating lug
3. Hole
4. Headlamp bracket
2. Position the headlamp to the front subframe. Fit the clamp but do not fully tighten
the fixings at this stage.
3. To return the headlight alignment to the factory standard position, move the
headlight unit until the front subframe alignment mark and the headlight bracket
mark are aligned.
1. Front subframe alignment mark
