2. Headlight bracket mark
4. Tighten the headlight bracket fixings to, front one first, 15 Nm.
5. Route the headlamp harnesses to their S-clips and into the back of the front
subframe as noted for removal.
6. Connect the headlight harnesses to the main harness.

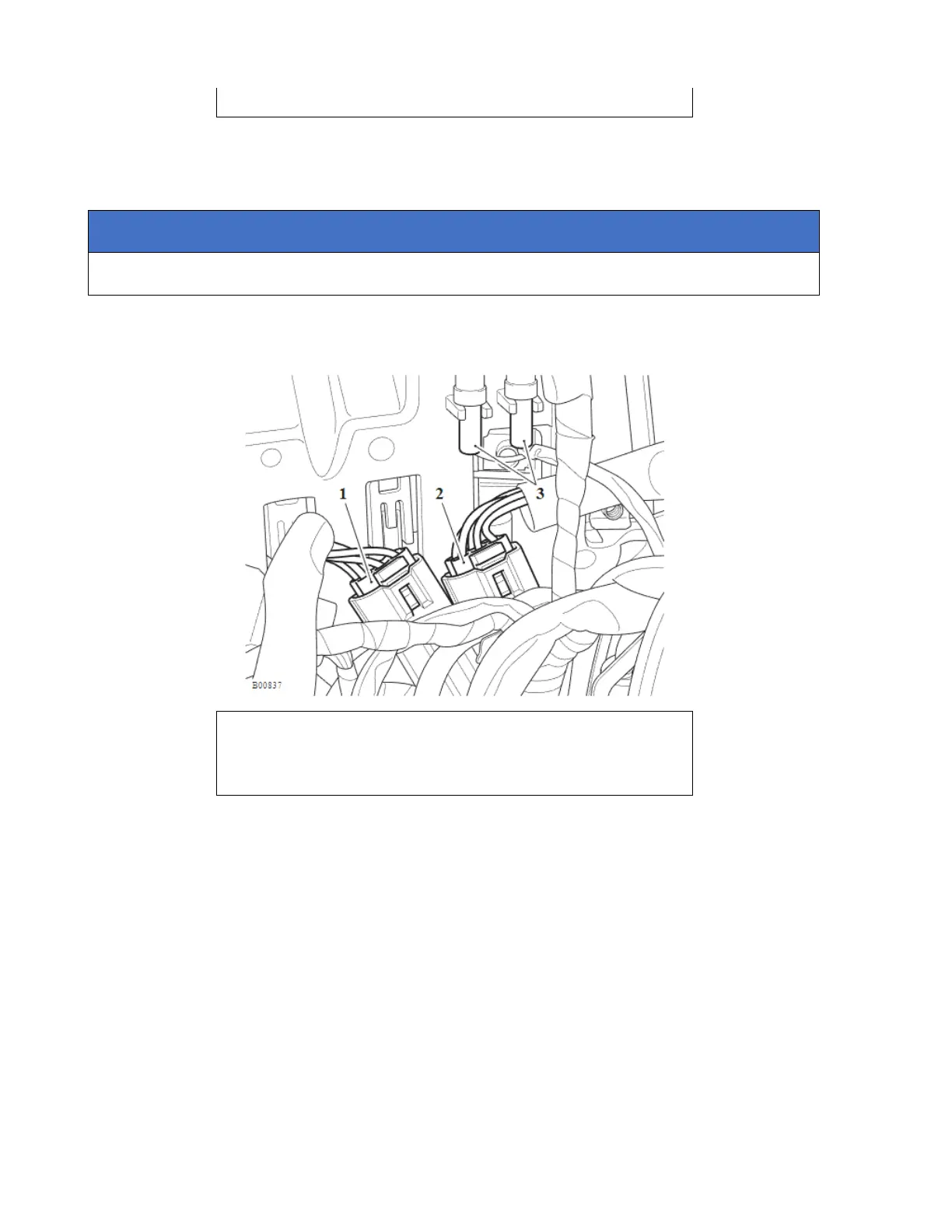

1. Left hand headlight connector
2. Right hand headlight connector
3. Right hand direction indicator connectors
7. Connect the two handlebar subharness connectors and the twist grip position sensor
connector to the main harness.
8. Secure the harness to the underside of the flyscreen mounting with two cable ties, as
noted for removal.
