Shielded Wires

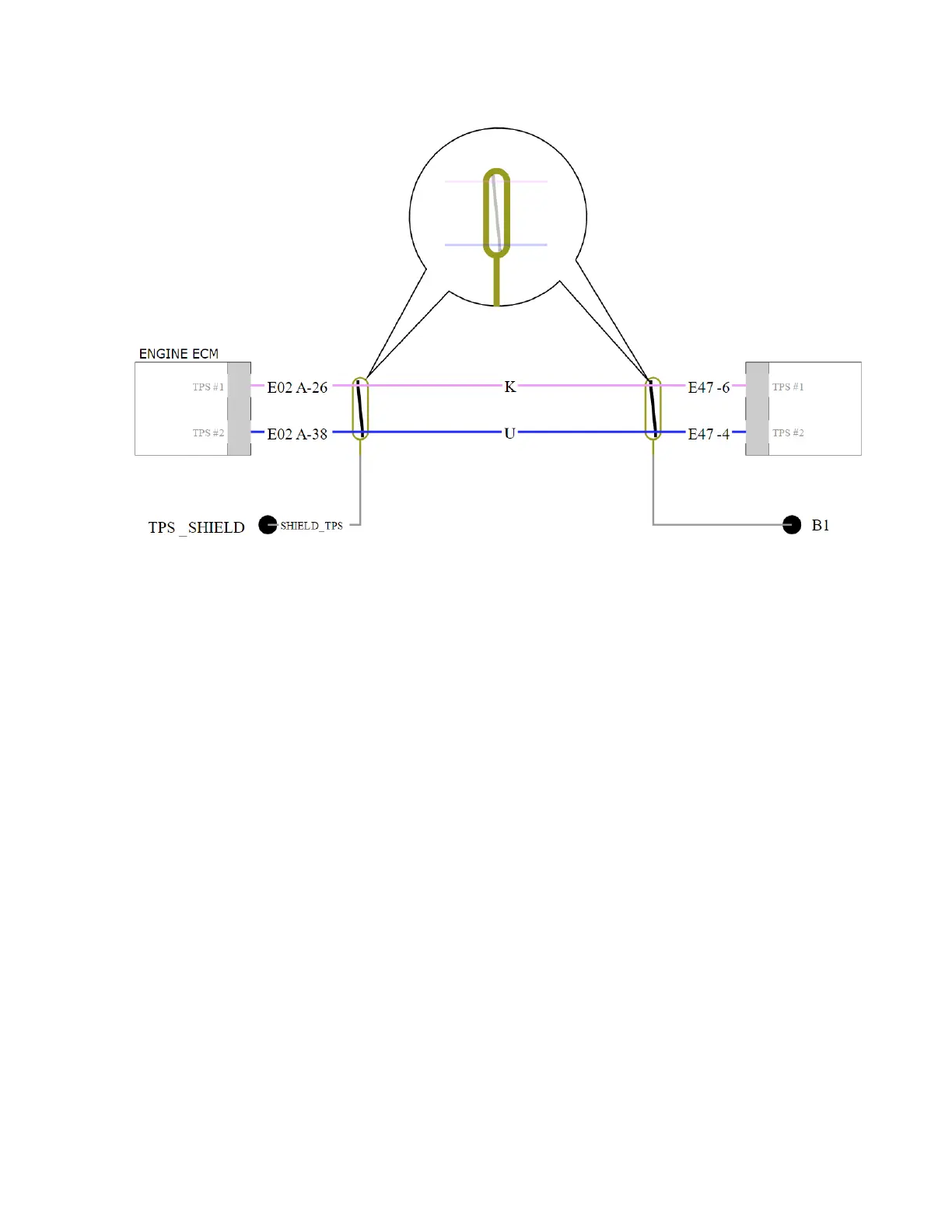

The illustration shows the symbol used to identify wires that are shielded against
electromagnetic interference.
Examples of components that have shielded wires include:
• ABS wheel speed sensors
• Immobiliser antenna
• Throttle position sensor
• USB socket
The wire shielding is typically connected to ground.
