Splices

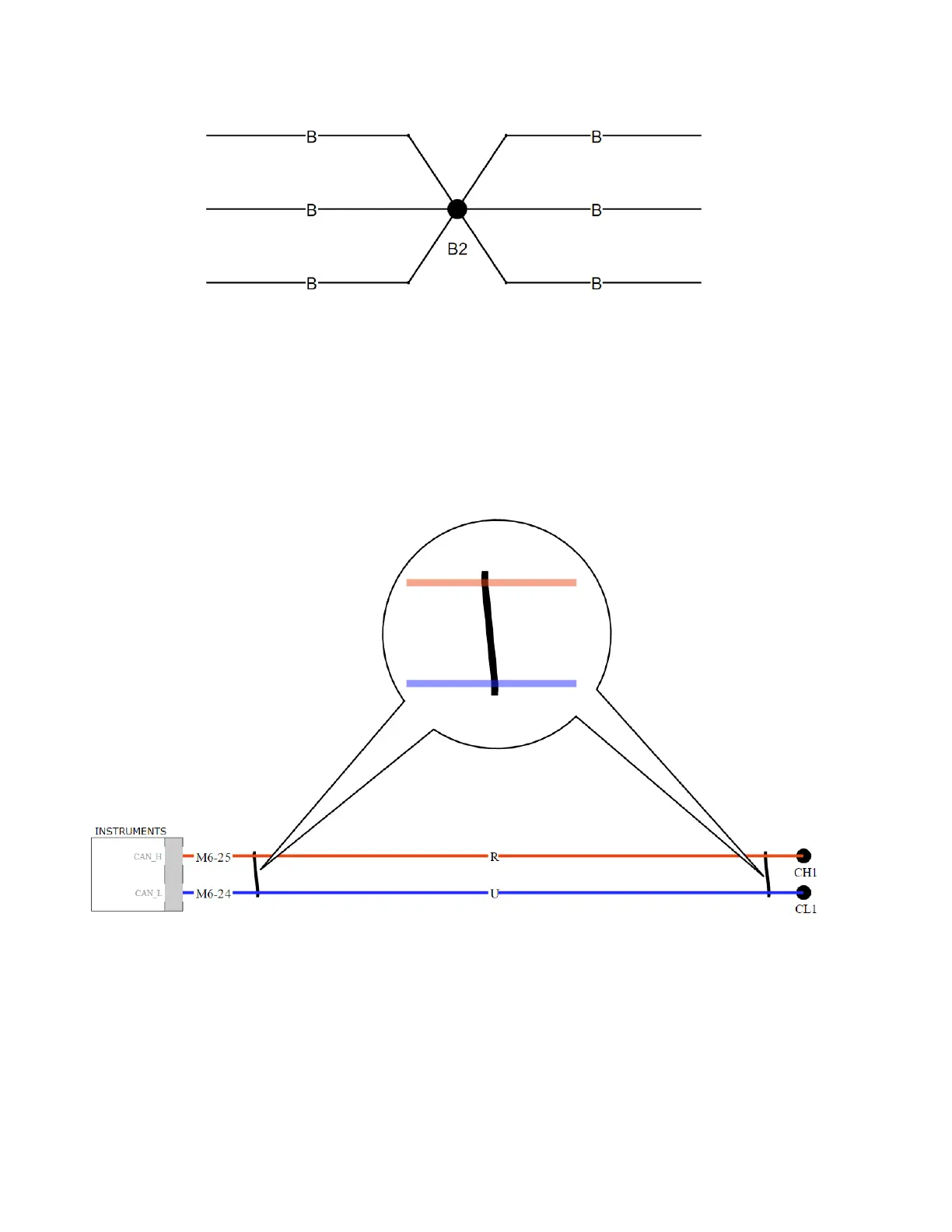

The illustration shows an example of a splice.
A splice is a hard cable joint where two or more cables are joined in the wiring harness. A
splice is a potential source of both open and short circuits.
A splice reference code is provided at the nearest convenient location to the splice
symbol.
Twisted Wires
The illustration shows the symbol used to indicate a pair of wires that are twisted
together, such as CAN circuit wires.
Starter Motor Grounding
Starter motors fitted to Triumph motorcycles are connected to ground through the
mating faces of the starter motor body and the crankcase.
