Triumph Rocket 3 GT 2021 - Page 1479

1439
Key To Wiring Colour Codes
Code
Wiring Colour
B
Black
U
Blue
N
Brown
G
Green
S
Slate/Grey
O
Orange
K
Pink
R
Red
P
Purple
W
White
Y
Yellow
LG
Light Green
LU
Light Blue

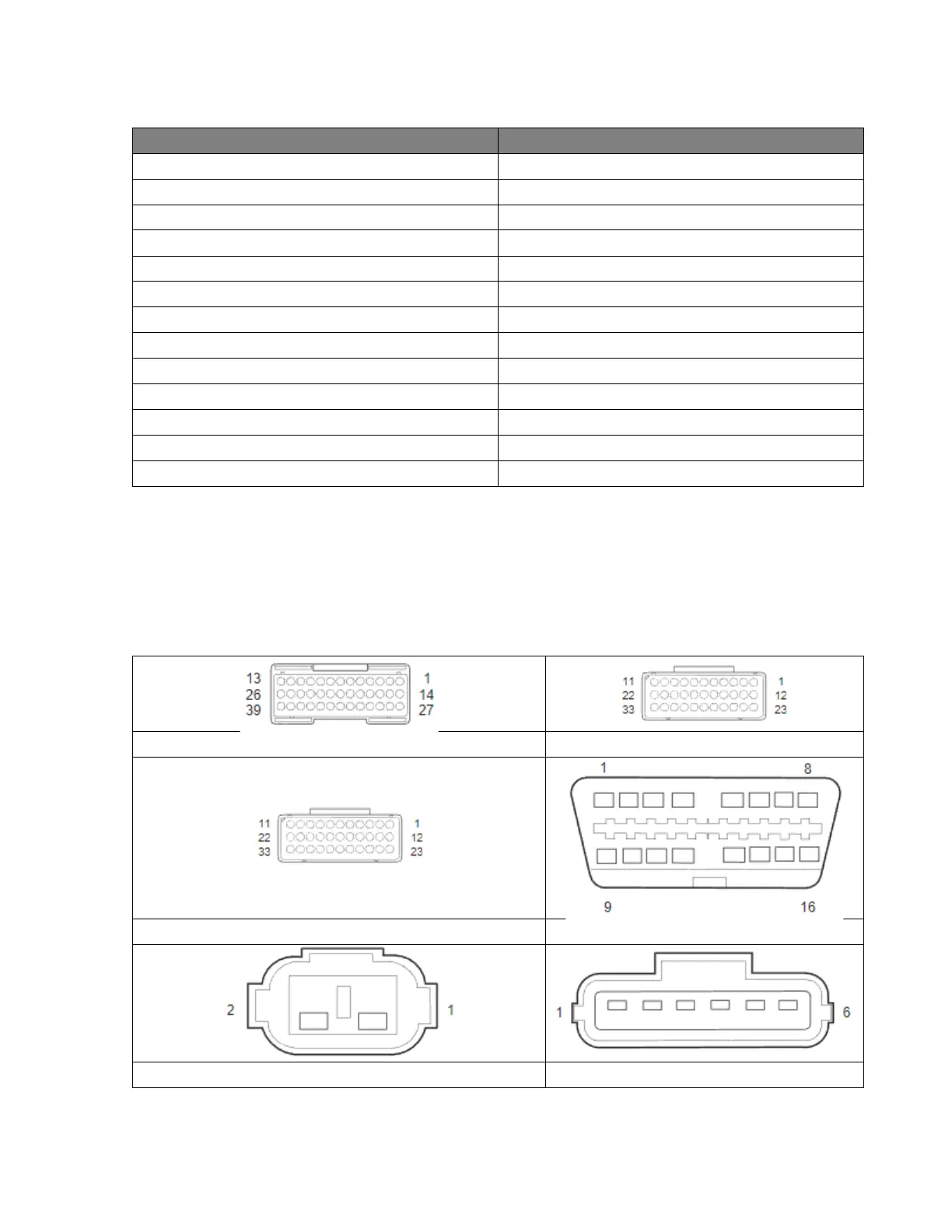

Main Wiring Harness Electrical Connectors
The table below shows the connector pin diagrams for each electrical connector on the
main wiring harness for this model.
E02A - Engine ECM connector A
E02B - Engine ECM connector B
E02C - Engine ECM connector C
E04 - Diagnostic connector
E05 - Crankshaft position sensor
E08 - Throttle position sensor
