1. The clutch fluid level must be kept between the upper and lower level lines (reservoir
held horizontal).
Clutch Fluid Level Adjustment
1. Clean the reservoir cap before removing.
2. Remove the two fixings.
3. Remove the reservoir cap and the diaphragm seal.
4. Fill the reservoir to the upper level line using new DOT 4 fluid from a sealed
container.
5. Refit the reservoir cap ensuring that the diaphragm seal is correctly positioned
between the cap and the reservoir body.
6. Refit the two fixings and tighten to 1.5 Nm.

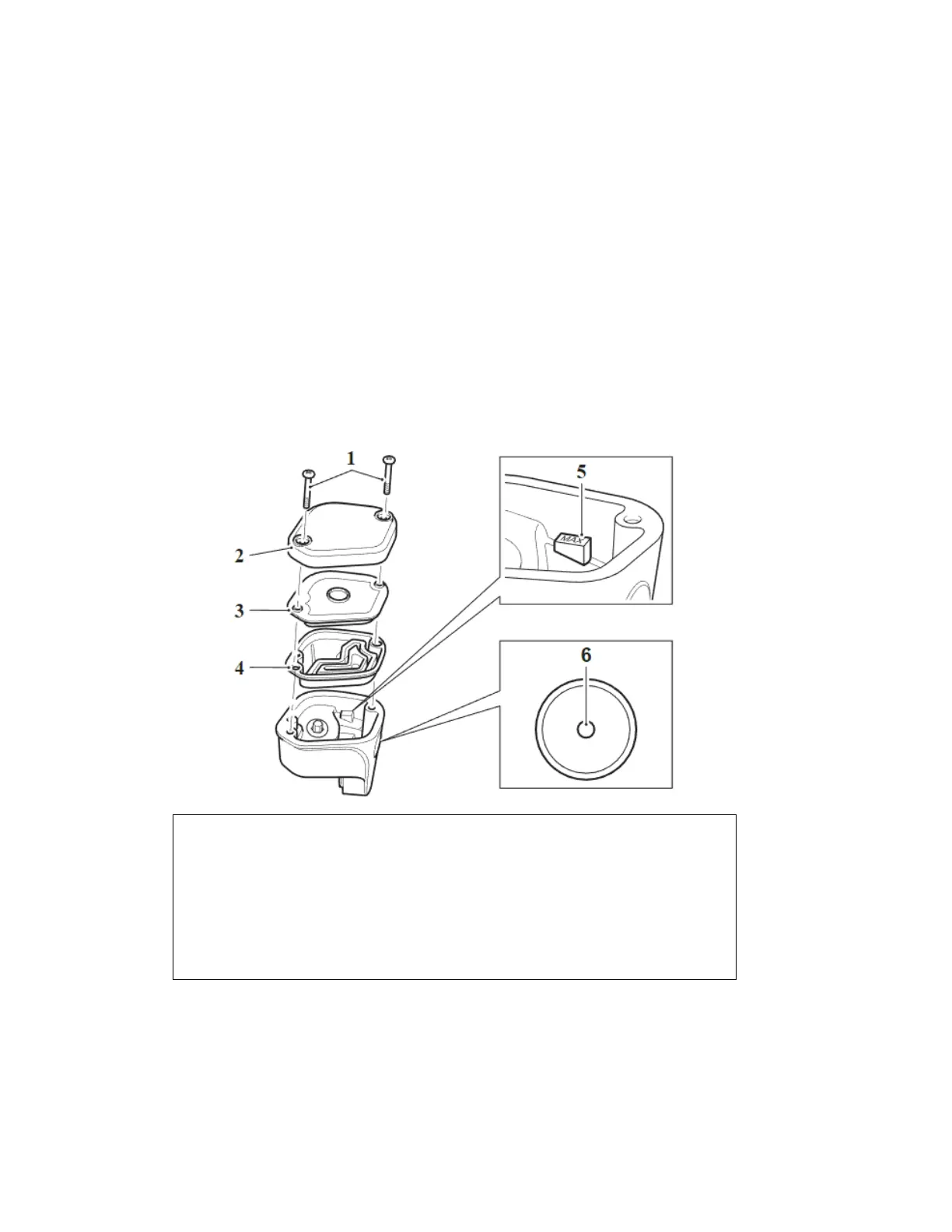

1. Fixings
2. Reservoir cap
3. Plastic plate
4. Diaphragm seal
5. MAX mark
6. MIN mark
