161

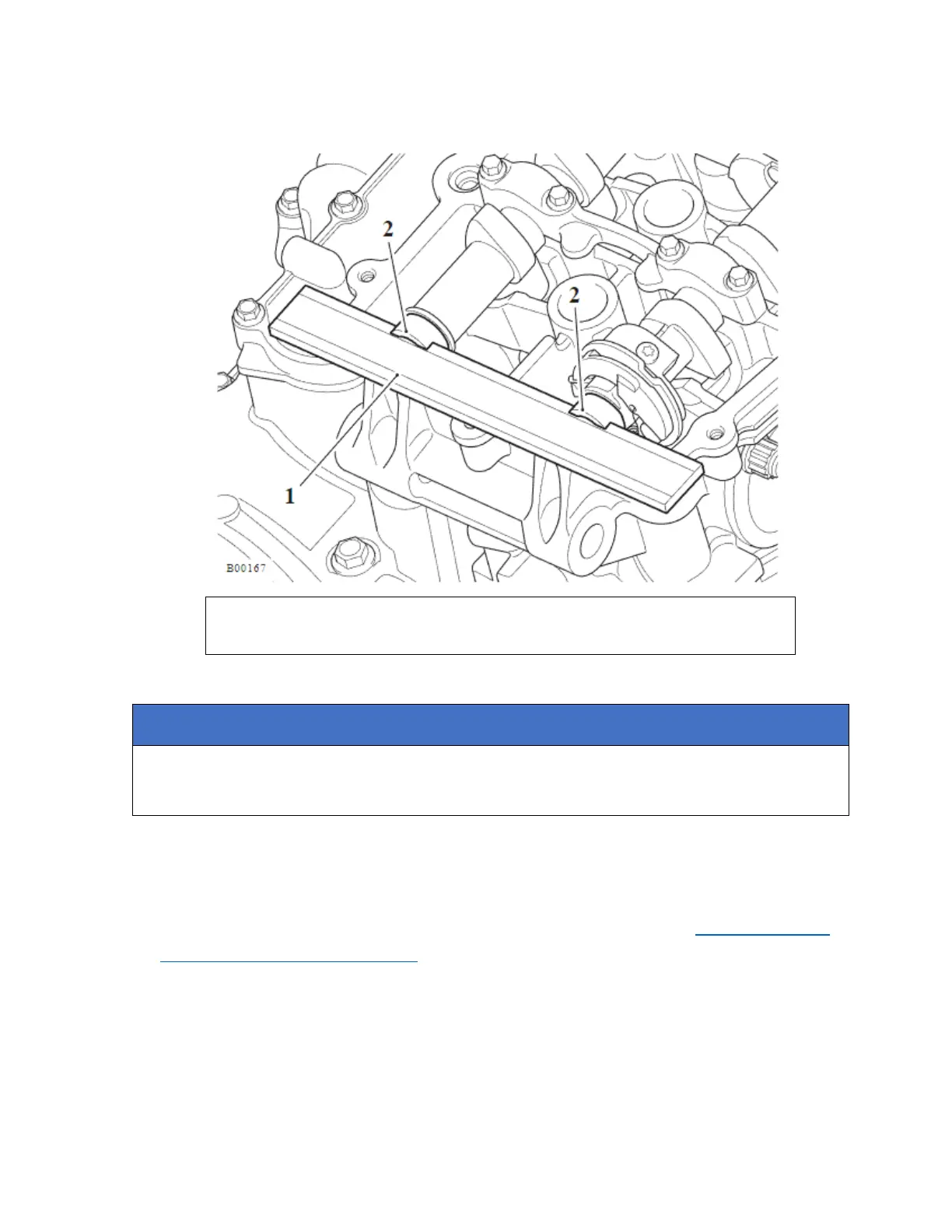

22. Insert service tool T3880502 into the camshaft slots. Make sure that the tool is
centrally located between the camshafts.
1. T3880502 Camshaft timing bar
2. Camshaft slots
Make sure the camshaft drive chain remains on the crankshaft sprocket when
removing service tool T3880651 and fitting the camshaft drive chain tensioner.
23. Maintain tension on the camshaft drive chain, release the tension on service tool
T3880651 and remove it.
24. Refit the timing chain tensioner, incorporating a new O-ring (see Camshaft Drive
Chain Tensioner - Installation).
25. Remove service tool T3880501.
26. Fit the crankshaft locking pin plug and tighten to 33 Nm.
