3. Holding the inner and outer tubes together, invert the fork and pour out the fork oil
into a suitable container.
4. Return the fork to service tool T3880171.
5. Allow the outer tube to slide down the inner to allow access to the spring spacer.
While compressing the fork spring and while the spring holder is in place always wear
protective equipment for the face and eyes and never stand directly above or look
directly down on the fork. If the spring compressor or holder should dislodge or
detach, the resulting release of spring tension could cause parts to fly off resulting in
injury to the user.
6. Fit service tool T3880067 over the top cap. Position the two adjustable arms to the
holes in the spring spacer. Screw in the arms until they positively engage in the
spring spacer holes.

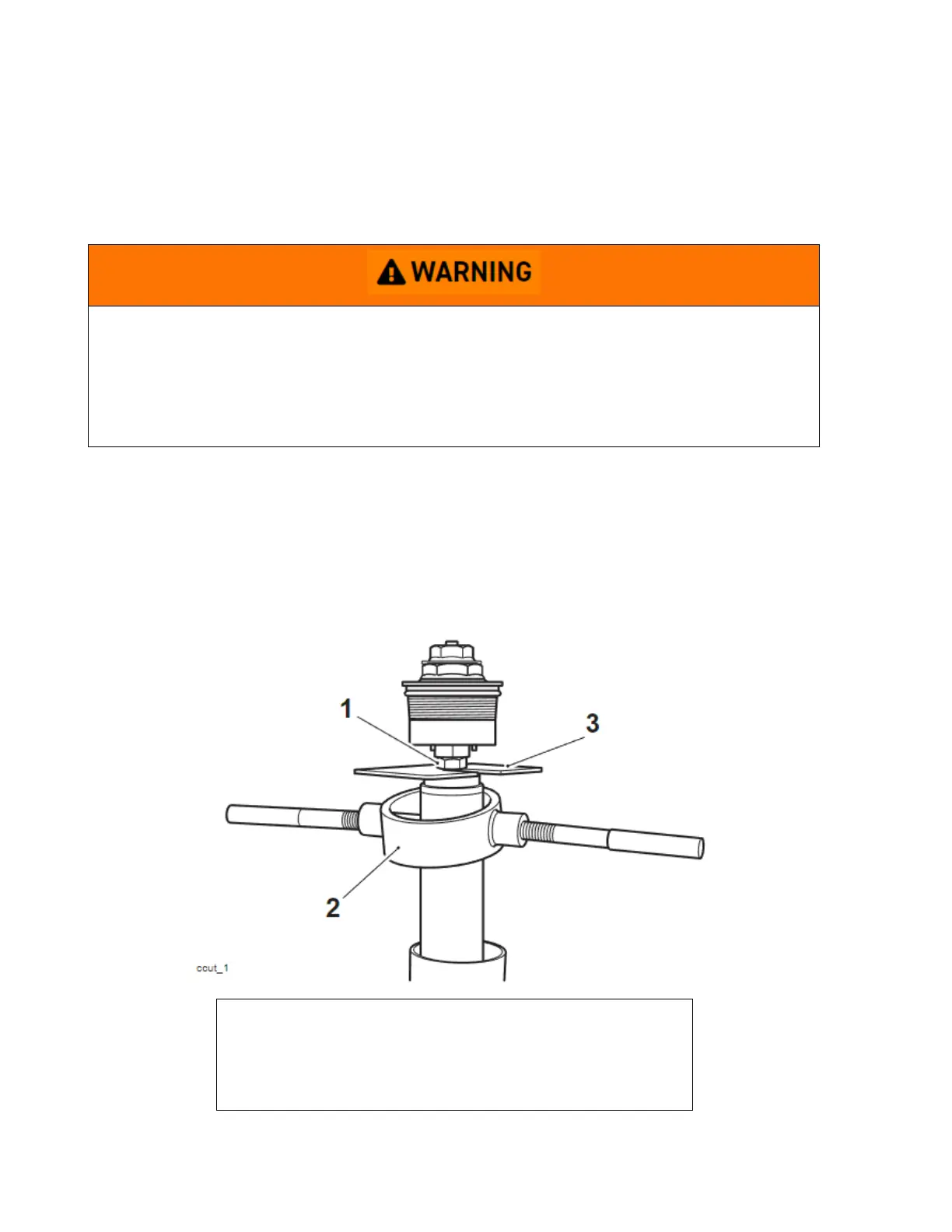

7. Using service tool T3880067, manually compress the fork spring and insert the spring
holder as shown, below the damper locknut.
1. Damper locknut
2. T3880067 - Fork Spring Compressor
3. Spring holder (part of T3880067 - Fork Spring
Compressor)
