10. Turn the damper rod lock nut until the length of threads to the end of the rod is
equal to the length measured during disassembly.

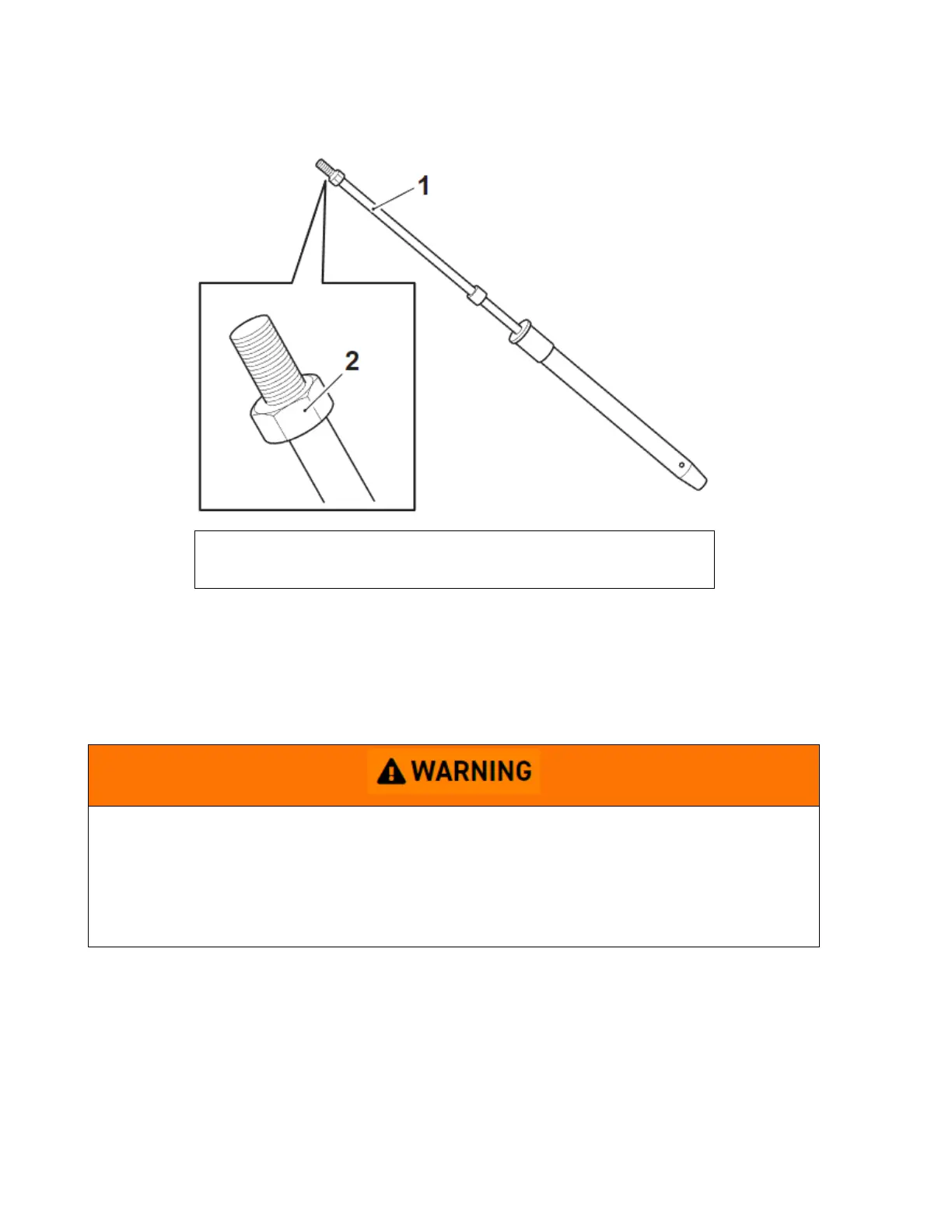

1. Damper rod
2. Locknut
11. Attach service tool T3880085 to the threads of the damper rod and pull the damper
upwards.
While compressing the fork spring and while the spring holder is in place always wear
protective equipment for the face and eyes and never stand directly above or look
directly down on the fork. If the spring compressor or holder should dislodge or
detach, the resulting release of spring tension could cause parts to fly off resulting in
injury to the user.
12. Fit service tool T3880067 as previously described. Compress the fork spring and refit
the spring holder.
13. Inspect the O-ring for the top cap for any damage, replace if necessary.
14. Carefully install the top cap and rebound adjuster rod. Slowly turn the cap until it
touches the locknut.
