Front Brake Fluid Level Adjustment
1. Remove the two fixings.
2. Remove the reservoir cap and the diaphragm seal.
3. Fill the reservoir to the upper level line using new DOT 4 fluid from a sealed
container.
4. Fit the insert to the diaphragm seal. Make sure the locating lug on the insert fits into
its hole in the diaphragm.
5. Fit the diaphragm and insert assembly to the reservoir cap. Make sure the holes for
the fixings are correctly aligned.
6. Fit the fixings into the cap and diaphragm seal assembly.

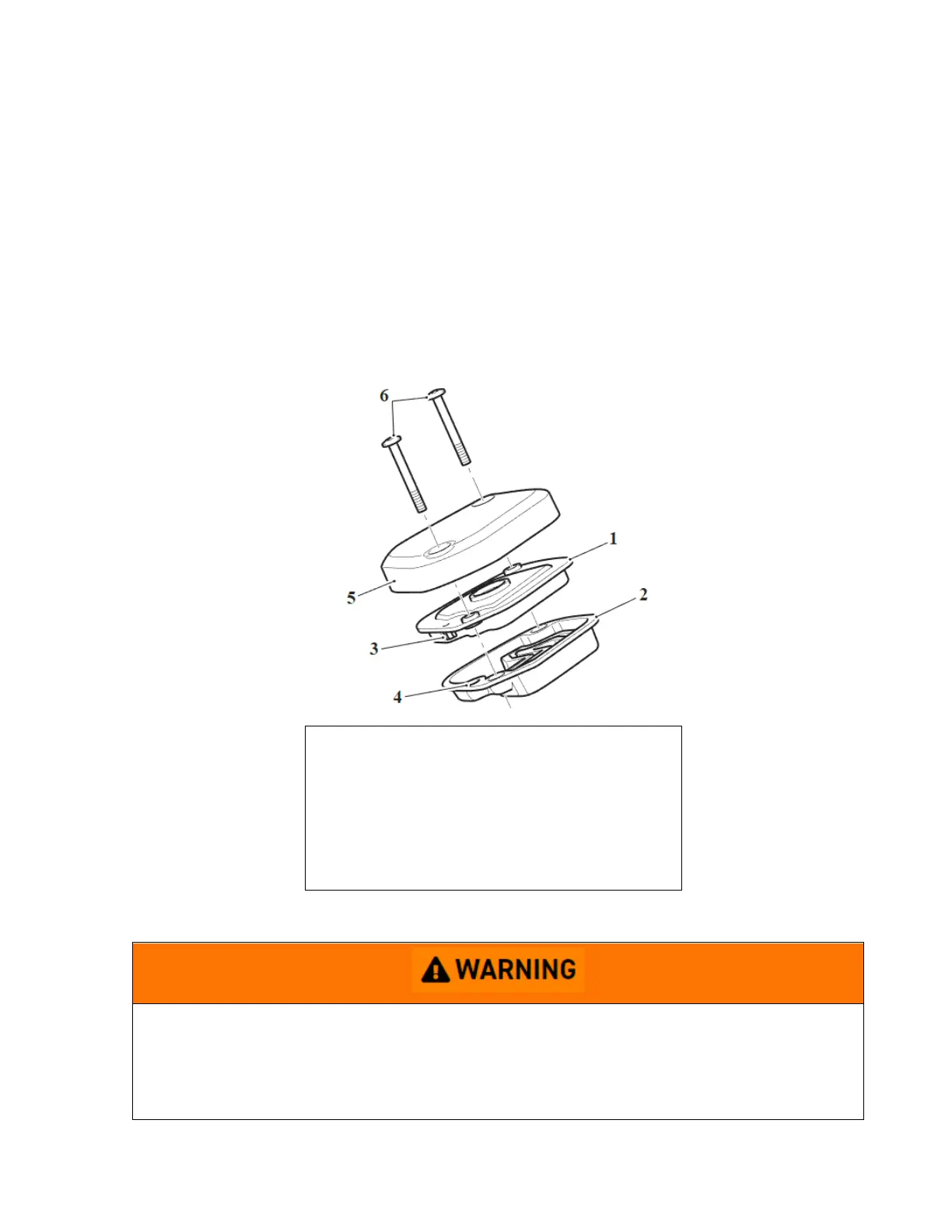

1. Insert
2. Diaphragm seal
3. Locating lug
4. Hole for locating lug
5. Reservoir cap
6. Fixings
If the master cylinder reservoir cap screws are over tightened this can result in a brake
fluid leak.
A dangerous riding condition leading to loss of motorcycle control and an accident
could result if this warning is ignored.
