Rear Brake Fluid Reservoir
1. The brake fluid level must be kept between the upper and lower level lines (reservoir
held horizontal).
Rear Brake Fluid Level Adjustment
NOTICE
It is not necessary to remove the float when adding brake fluid to the rear brake
master cylinder.
1. Remove the two fixings.
2. Remove the reservoir cap and the diaphragm seal.
3. Fill the reservoir to the upper level line using new DOT 4 fluid from a sealed
container.
4. Make sure the float for the brake fluid reservoir is in the reservoir.
5. Fit the reservoir cover to the diaphragm seal.
6. Fit the diaphragm and cover assembly to the reservoir cap. Make sure the holes for
the fixings are correctly aligned.

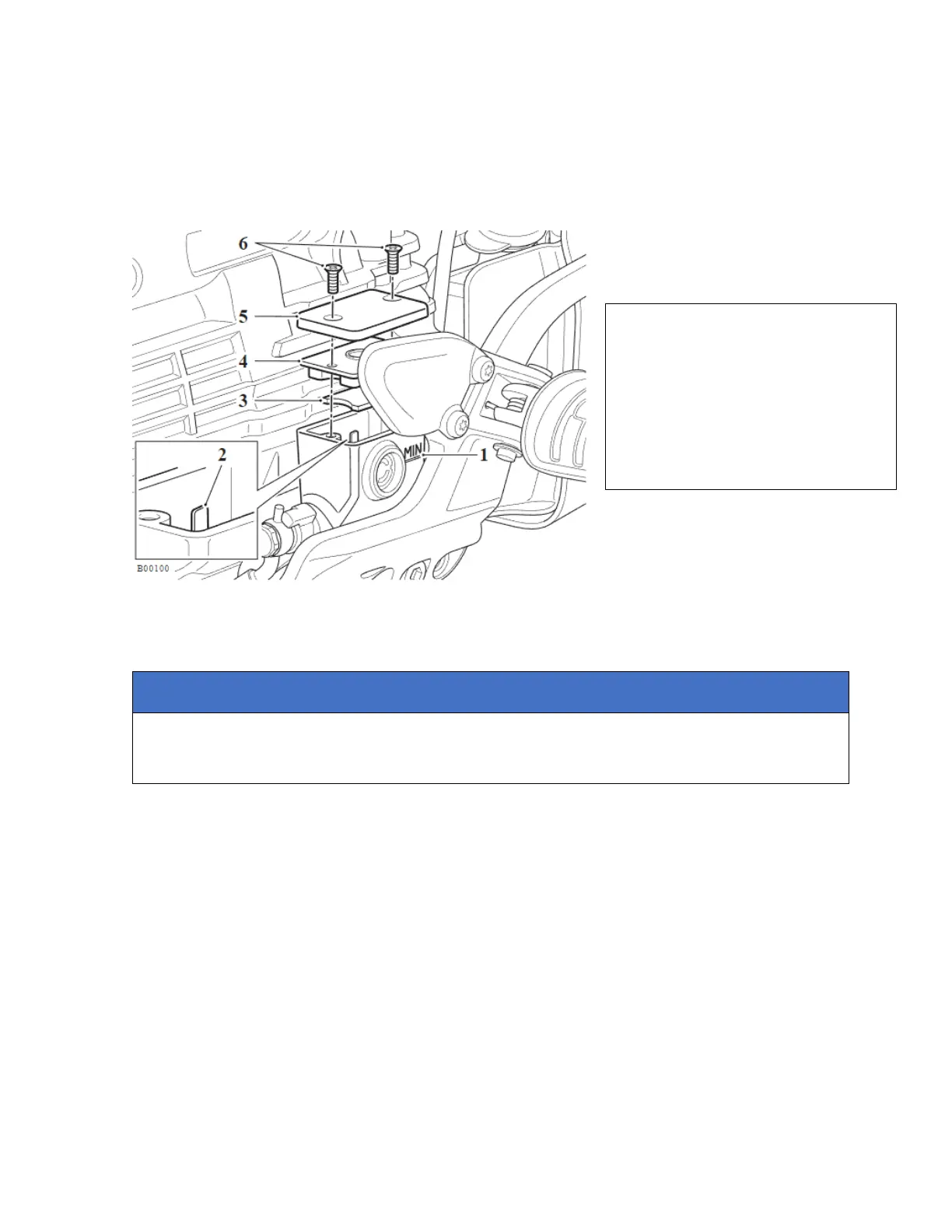

1. MIN mark
2. MAX mark
3. Float
4. Seal
5. Reservoir cap
6. Fixings
