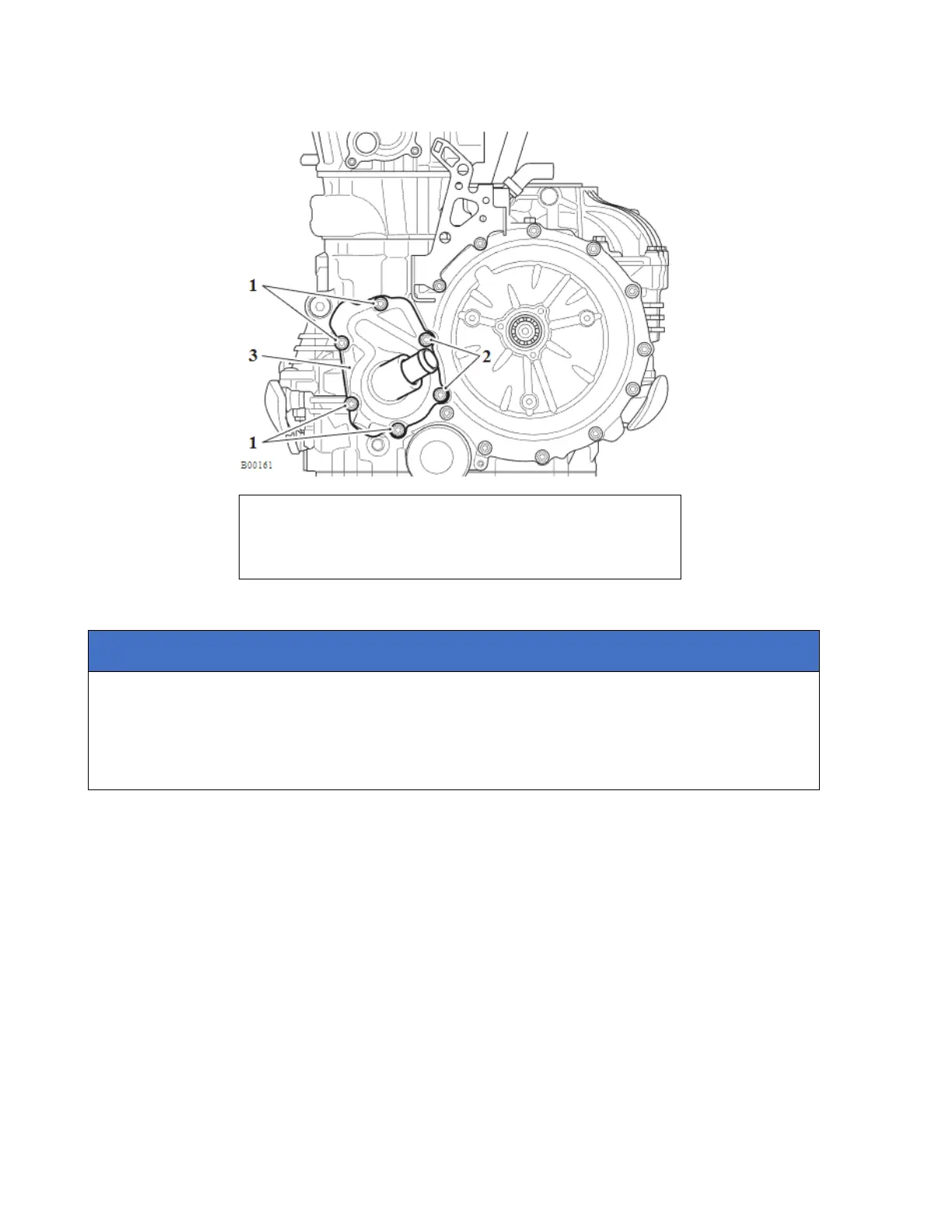

7. Release the fixings and remove the water pump cover. Discard the seal.
1. M6 x 70 mm fixings
2. M6 x 35 mm fixings
3. Water pump cover
NOTICE
For the clutch cover there are, five M6 x 50 mm and six M6 x 35 mm fixings.
Note the position of the fixings for installation.
Note the position of the radiator lower bracket for installation.
Note the position of the dowels for installation.
8. Place an oil catch tray beneath the clutch cover to collect engine oil that may spill out
on removal.
