9. Release the fixings and remove the clutch cover. Discard the gasket.

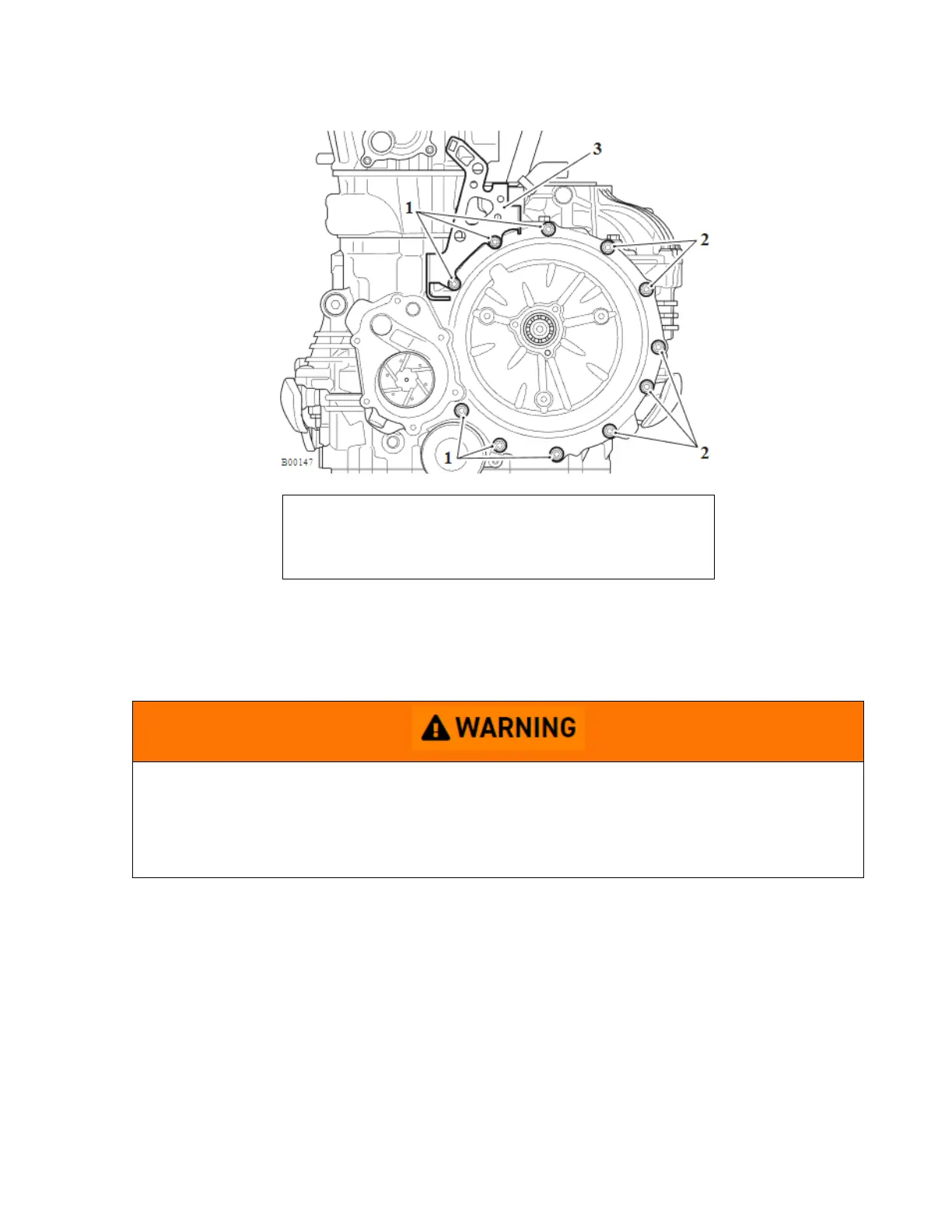

1. M6 x 35 mm fixings
2. M6 x 50 mm fixings
3. Radiator lower bracket
Clutch Cover – Installation
Make sure the motorcycle is stabilised and adequately supported.
A correctly supported motorcycle will help prevent it from falling.
An unstable motorcycle may fall, causing injury to the operator or damage to the
motorcycle.
1. Thoroughly clean the cover and crankcase mating faces.
2. Make sure the dowels are fitted as noted for removal.
3. Position a new gasket to the crankcase.
4. With the water pump drive tang is aligned with the slot in the crankshaft nut, refit the
cover ensuring that the gasket does not become dislodged.
5. Position the radiator lower bracket to the clutch cover as noted for removal.
