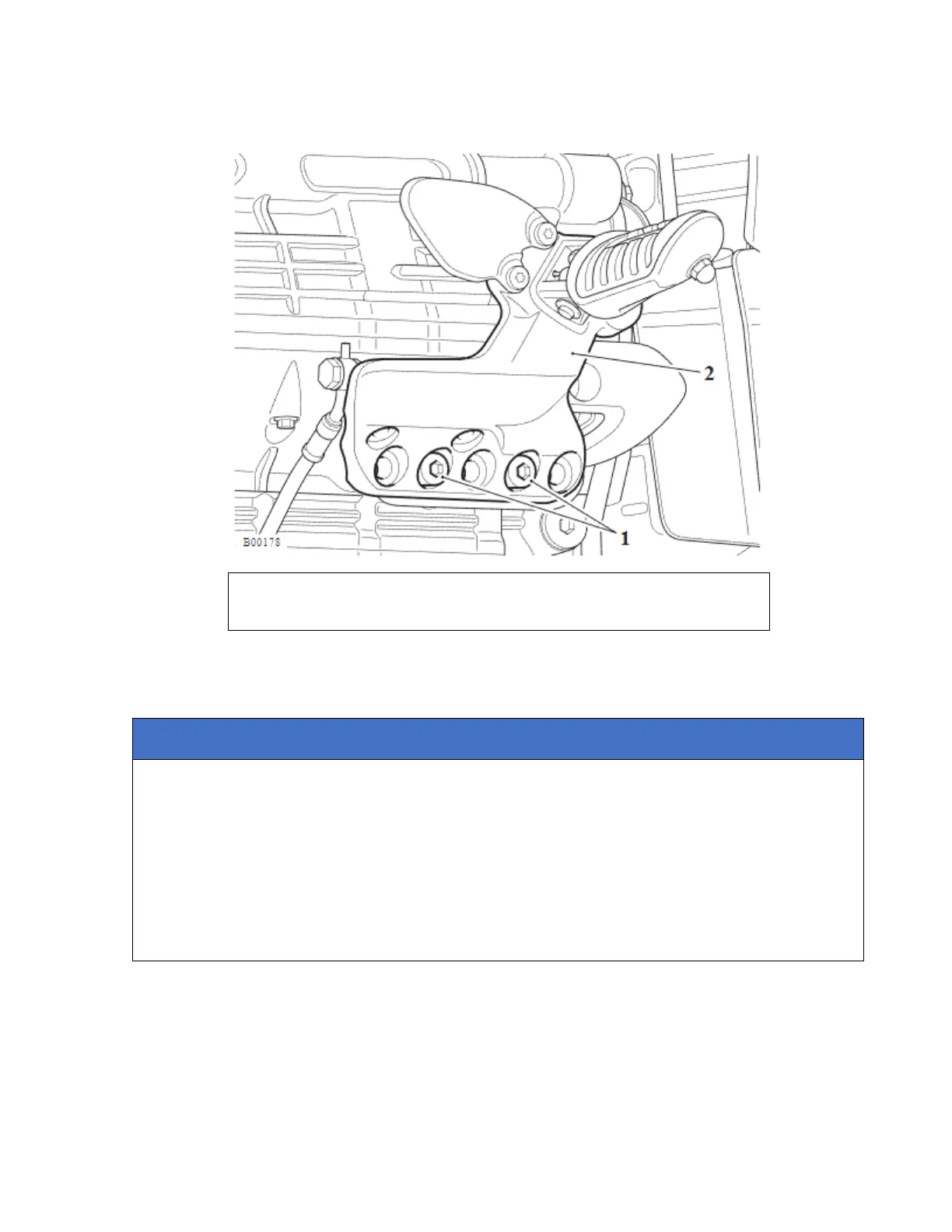

8. Release the fixings and detach the rider right hand control plate from the engine.
support the control plate to prevent damage to the brake lines.
1. Fixings
2. Right hand control plate
NOTICE
For the sump there are, twenty six M6 x30 mm, two M6 x 130 mm and five M6 x 50
mm fixings.
The M6 x 50 mm fixings are encapsulated and must be replaced if loosened or
removed.
Note the position of the fixings for installation.
Note the positions of the dowels for installation.
