274

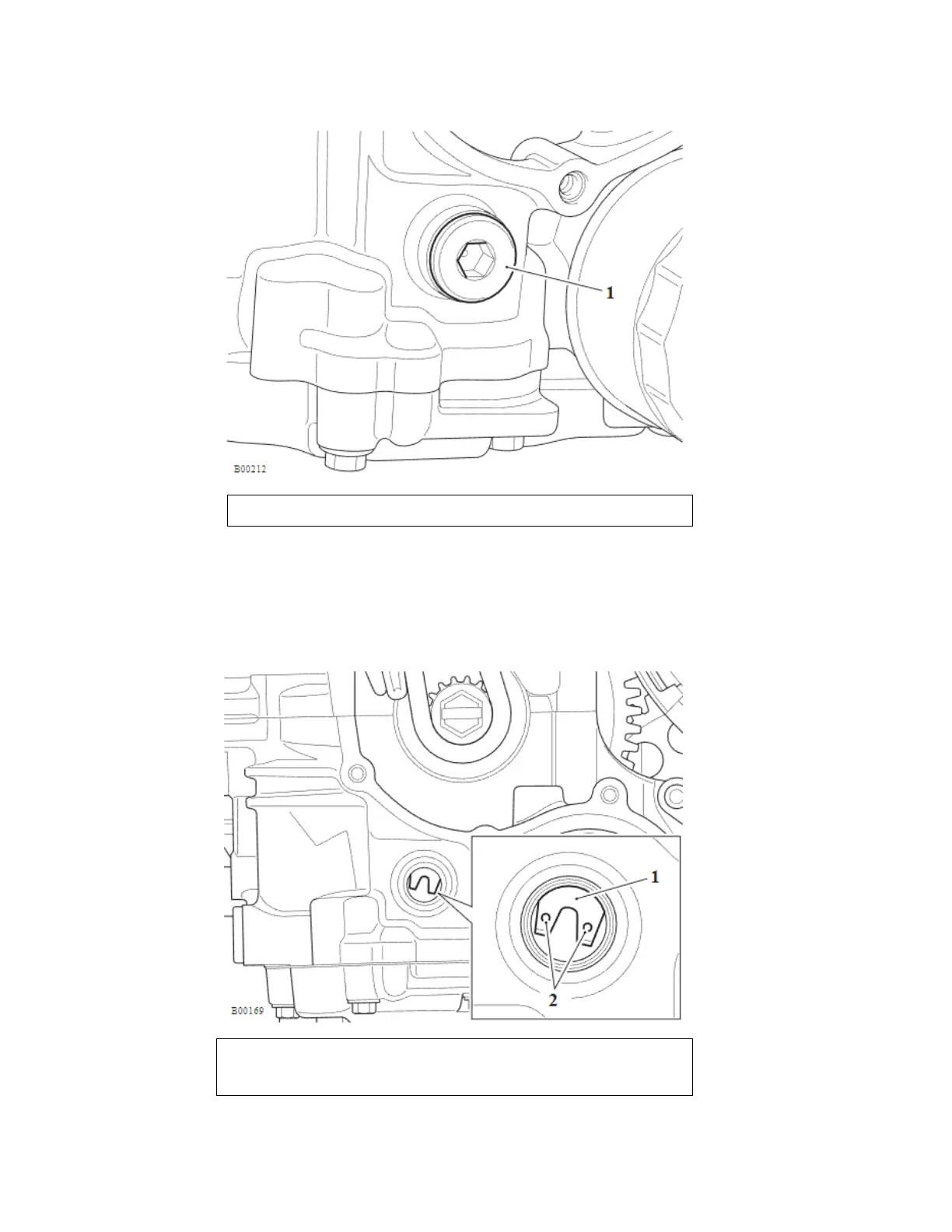

15. Remove the crankshaft locking pin plug from the crankcase.
1. Locking pin plug
2. At the front of the engine, rotate the crankshaft anticlockwise using the bolt fitted to
the end of the crankshaft until the two gear teeth with an alignment mark on each is
visible and central in the hole for the crankshaft locking pin.
2. Crankshaft primary gear
3. Alignment marks
