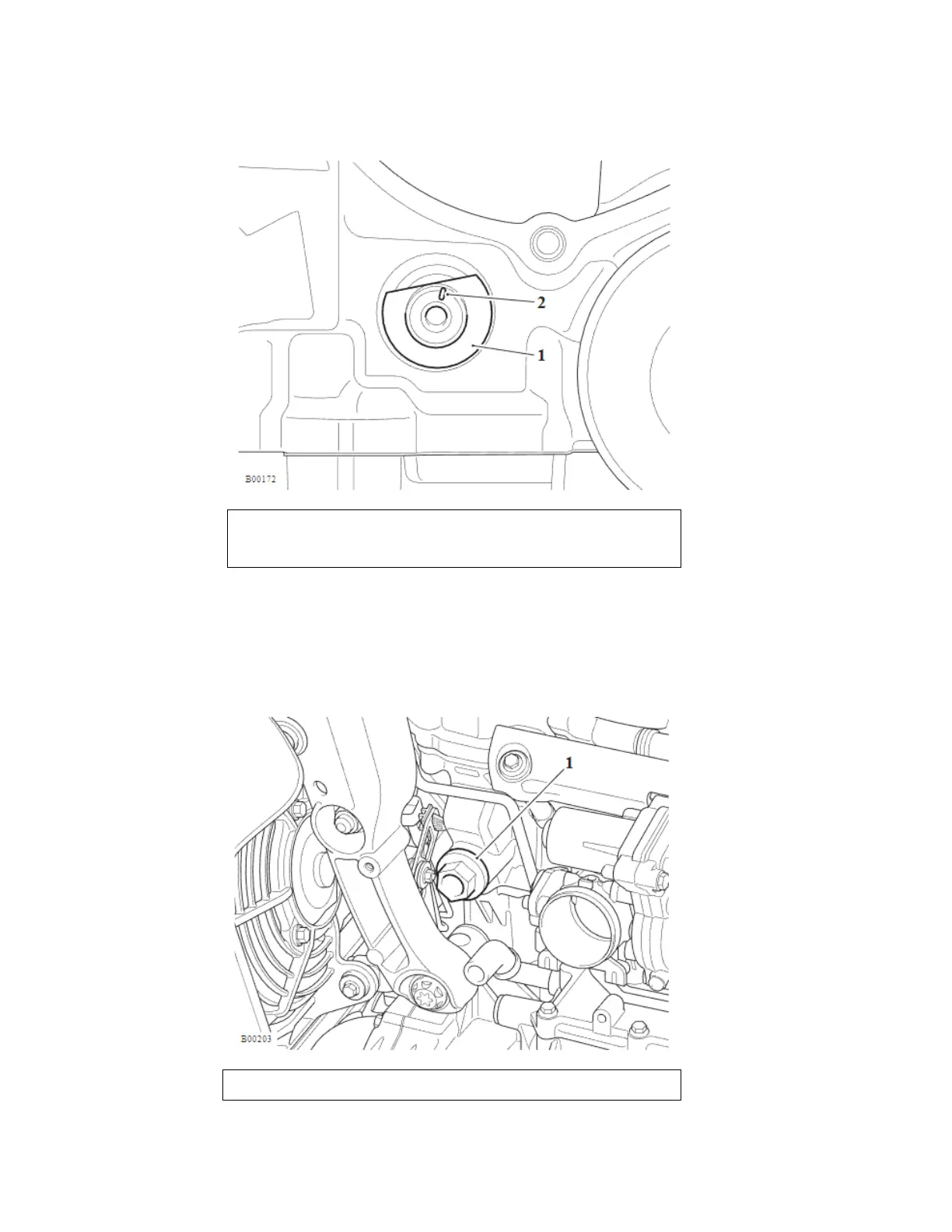

4. Insert service tool T3880501 through the hole in the crankcase. Make sure the gear
tooth on the service tool fits between the two teeth with the alignment marks.
1. T3880501 - Crankshaft Locking Pin
2. Alignment mark
5. Place suitable wedges between the camshaft sprockets and the crankcase, to hold
the camshaft drive chain taut during removal of the tensioner.
6. Using service tool T3880649, unscrew the hydraulic tensioner body until the plunger
spring tension has been released.
1. Tensioner
