8. Evenly and progressively release the bolts securing the camshaft caps to the cylinder
head in the sequence shown below.

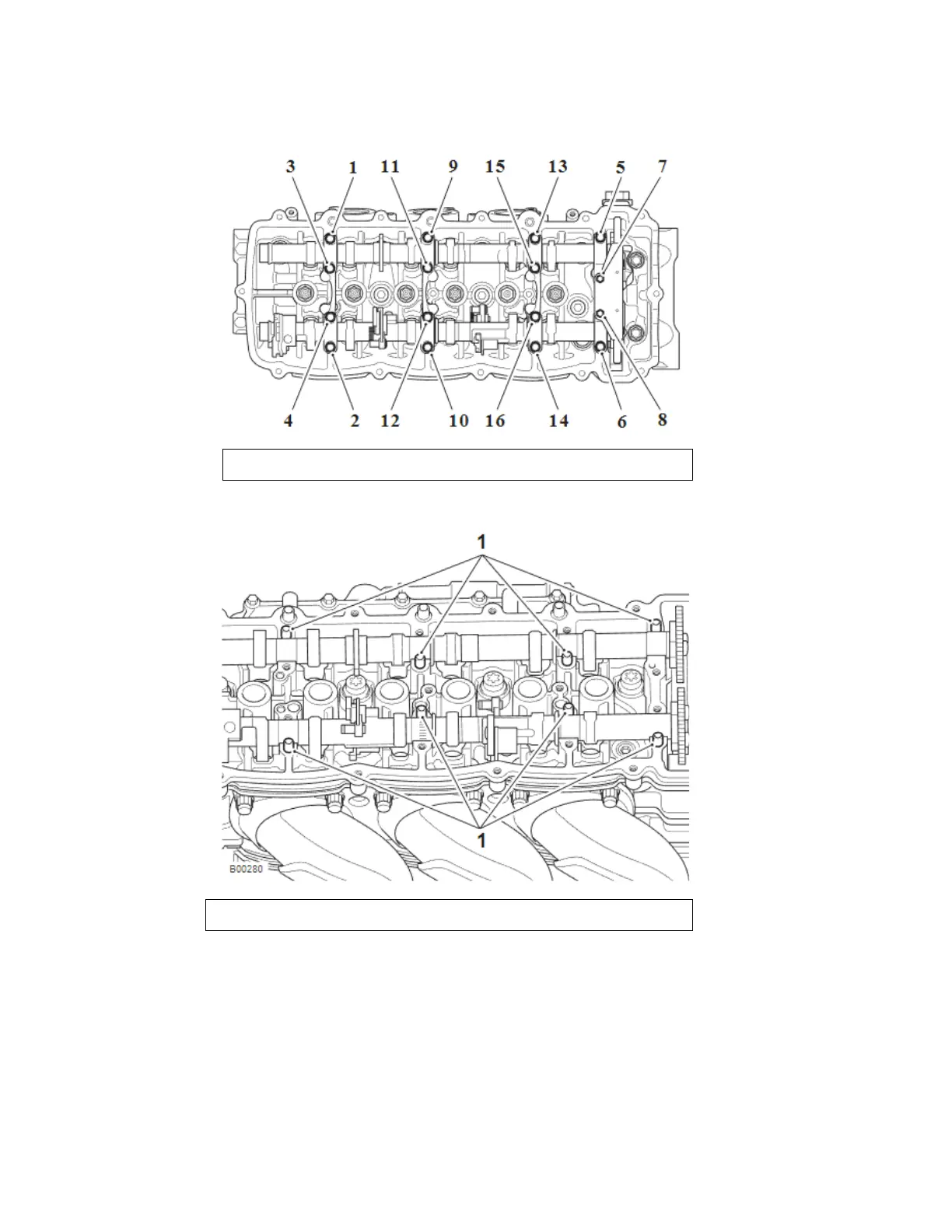

Camshaft Caps Release Sequence
9. Remove the camshaft caps. Collect the dowels (if loose),
1. Dowel locations
10. Lift the camshaft drive chain from the exhaust camshaft sprocket and remove the
exhaust camshaft.
11. Repeat the procedure for the inlet camshaft.
12. Noting its orientation for installation remove the camshaft drive chain.
13. Remove the crankshaft locking pin plug from the crankcase.
