If any components have been renewed, the valve clearances must be checked and
adjusted. Running with incorrectly adjusted valve clearances may cause excess engine
noise, rough running and engine damage.
18. Check that the camshaft drive chain is engaged around the camshaft drive sprocket
on the crankshaft, the camshaft sprockets and the camshaft drive chain is positioned
against the tensioner blade.
19. Fit the service tool T3880651 and tighten to 16 Nm.

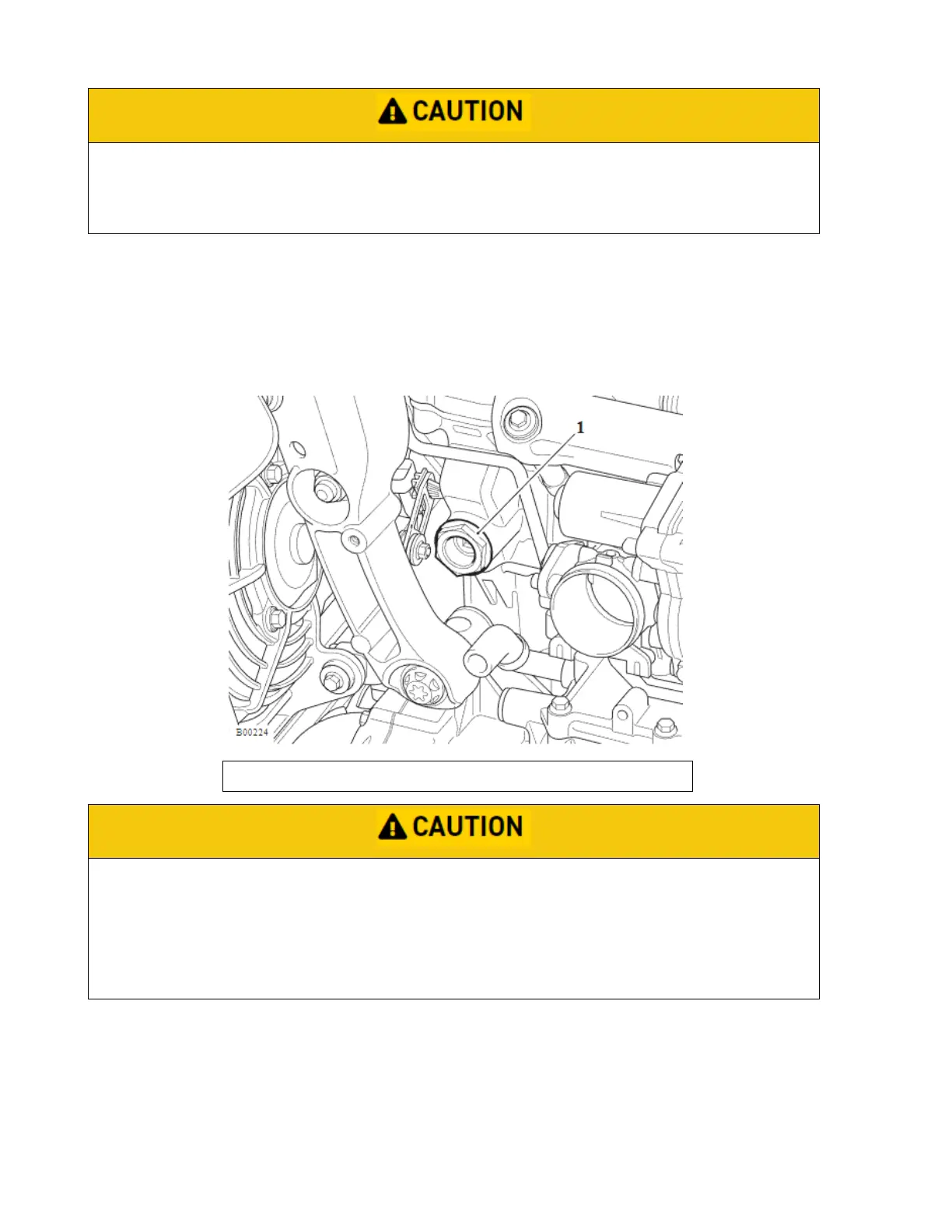

1. T3880651 - Timing Chain Tensioner
The torque value stated is very important to accurate timing. Always use the correct
value of 0.6 Nm, as set using T3880609 - Timing Torque Limiter. Using an incorrect
torque value will result in incorrect valve timing being set, or damage to the tensioner
blade or other valve train components. Either condition may result in serious damage
to the engine, reduced engine performance, or reduced fuel economy.
20. Using the service tool T3880609, tighten the internal screw thread to 0.6 Nm.
