If the camshafts and camshaft caps are fitted without first aligning the timing marks on
both the crankshaft and camshaft sprockets, the inlet and exhaust valves will contact
each other causing damage to both the cylinder head and the valves.
13. Lubricate the camshaft bearing areas of the camshaft caps with a 50/50 solution of
engine oil and molybdenum disulphide grease.
14. Assemble the dowels, camshaft caps and top pad in the same location and
orientation as noted for removal.
15. Tighten the camshaft caps 16 fixings in the following two stages:
Stage 1
16. Tighten the fixings in the sequence shown to 5 Nm.
Stage 2
17. Tighten the fixings in the sequence shown to 10 Nm.

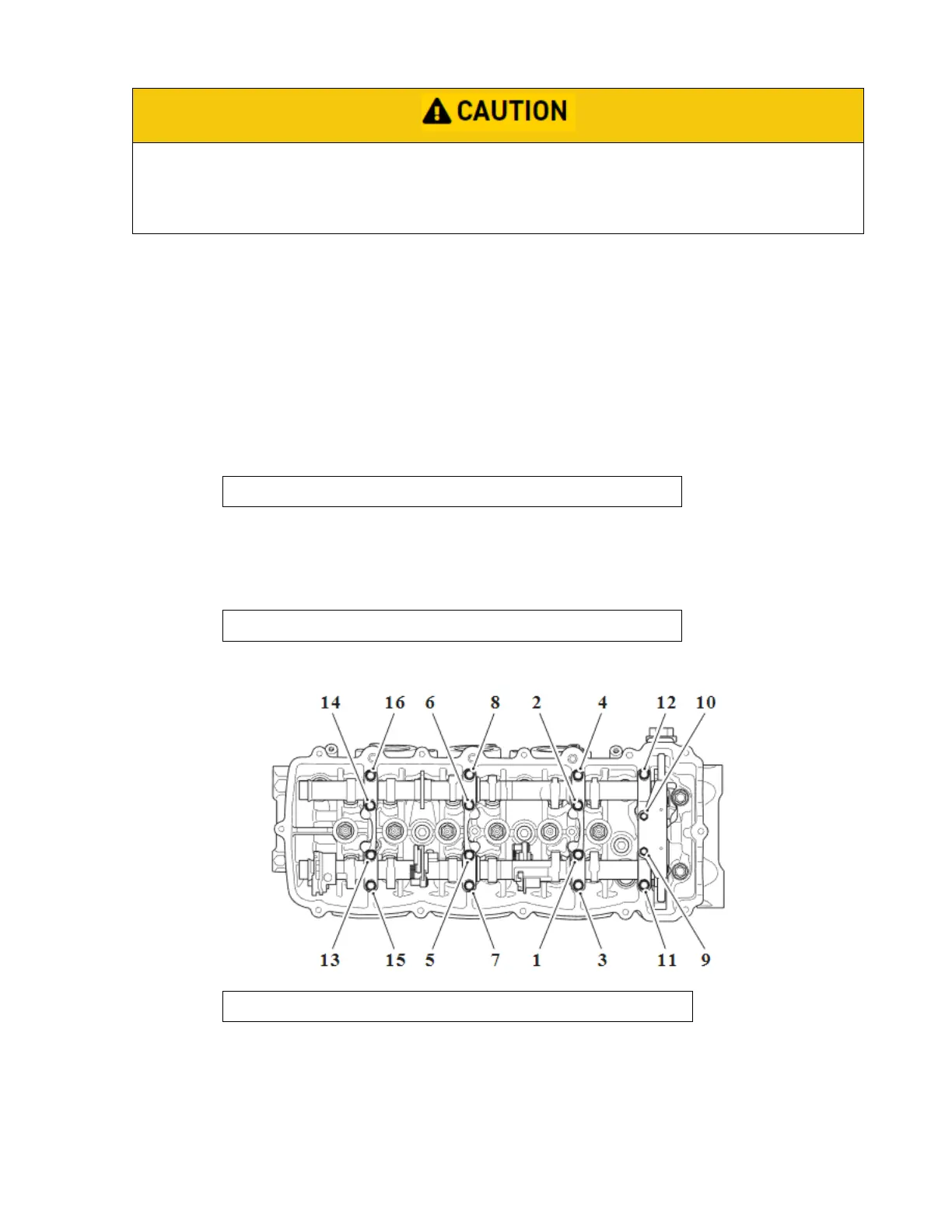

Camshaft Caps Tightening Sequence
