The alignment mark on the flange of T3880501 - Crankshaft Locking Pin is in line with
the gear tooth at the other end of the service tool. Use this alignment mark as a guide
when inserting the service tool.

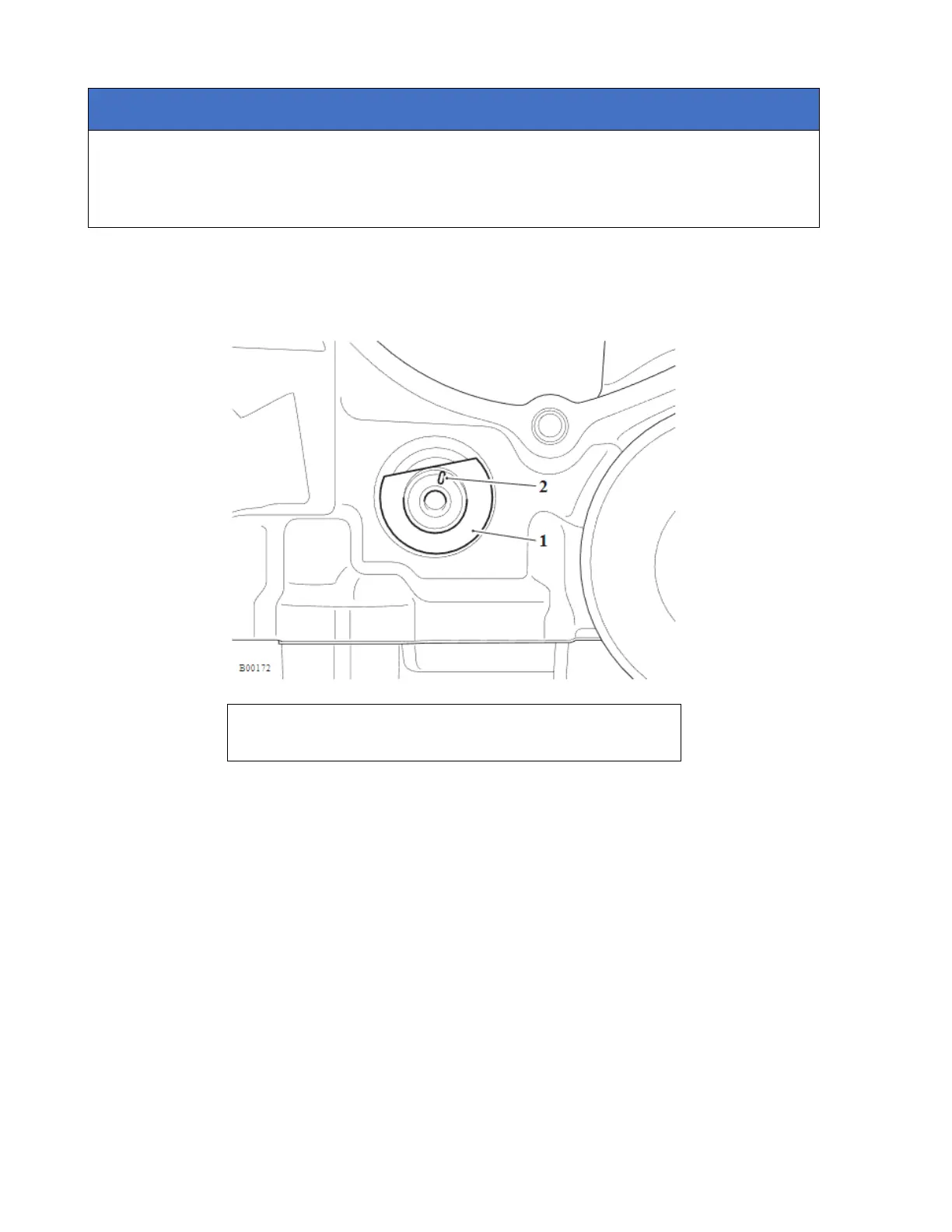

30. Insert service tool T3880501 through the hole in the crankcase. Make sure the gear
tooth on the service tool fits between the two teeth with the alignment marks.
1. T3880501-Crankshaft Locking Pin
2. Alignment mark
31. Check that the timing marks are still approximately aligned (to check that the
camshaft timing has not moved during service tool T3880651 removal).
32. Remove service tool T3880501
