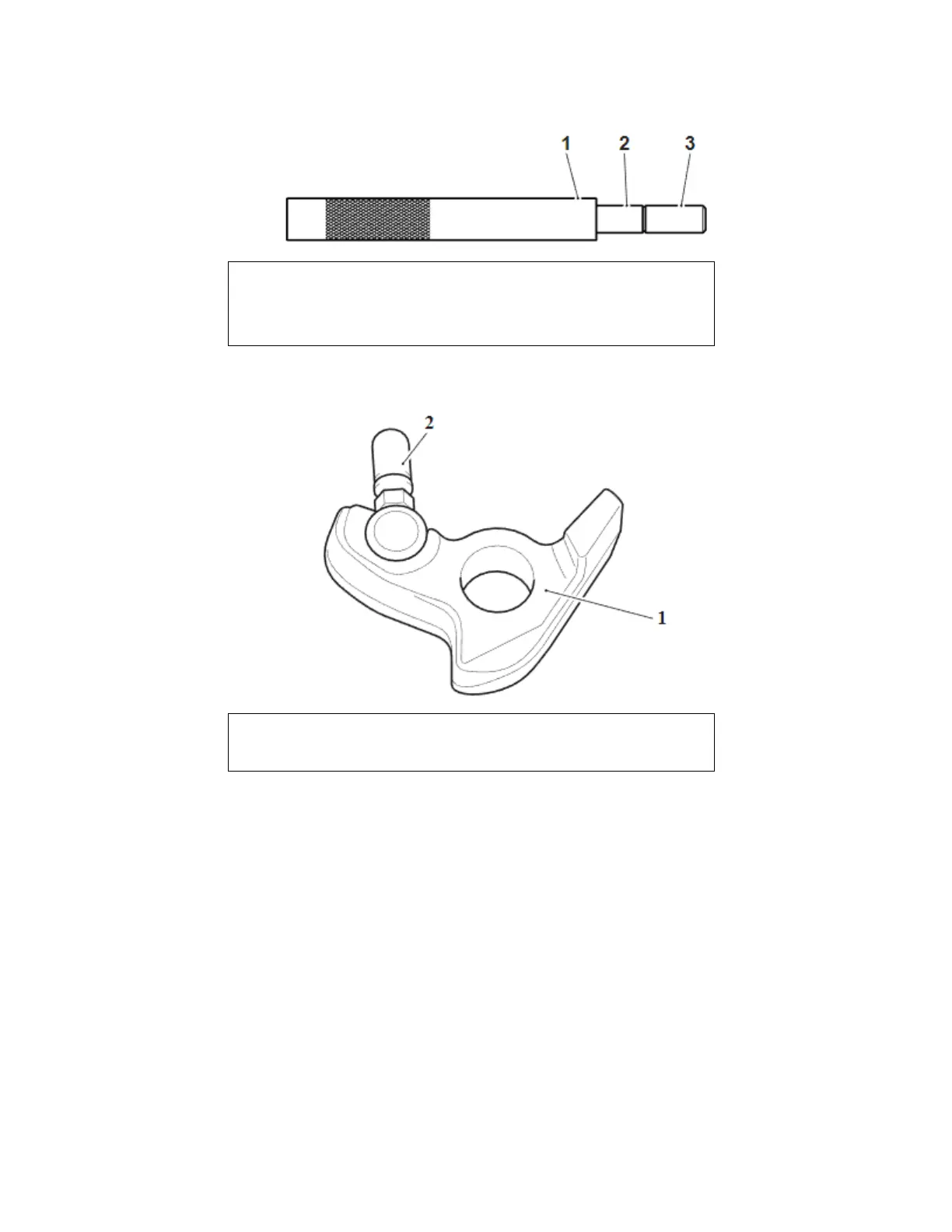

2. Screw the installer piece into the mandrel.
1. Mandrel
2. Pivot sleeve
3. Installer piece
3. Make sure the push rod is fitted to the pivot.
1. Pivot
2. Push rod
4. Align the lever to the pivot and push rod assembly ensuring the return spring is
located as noted during removal.
5. Using the service tool, align the installer piece to the lever and gently push down on
the mandrel locating the installer piece, through the lever and pivot.
