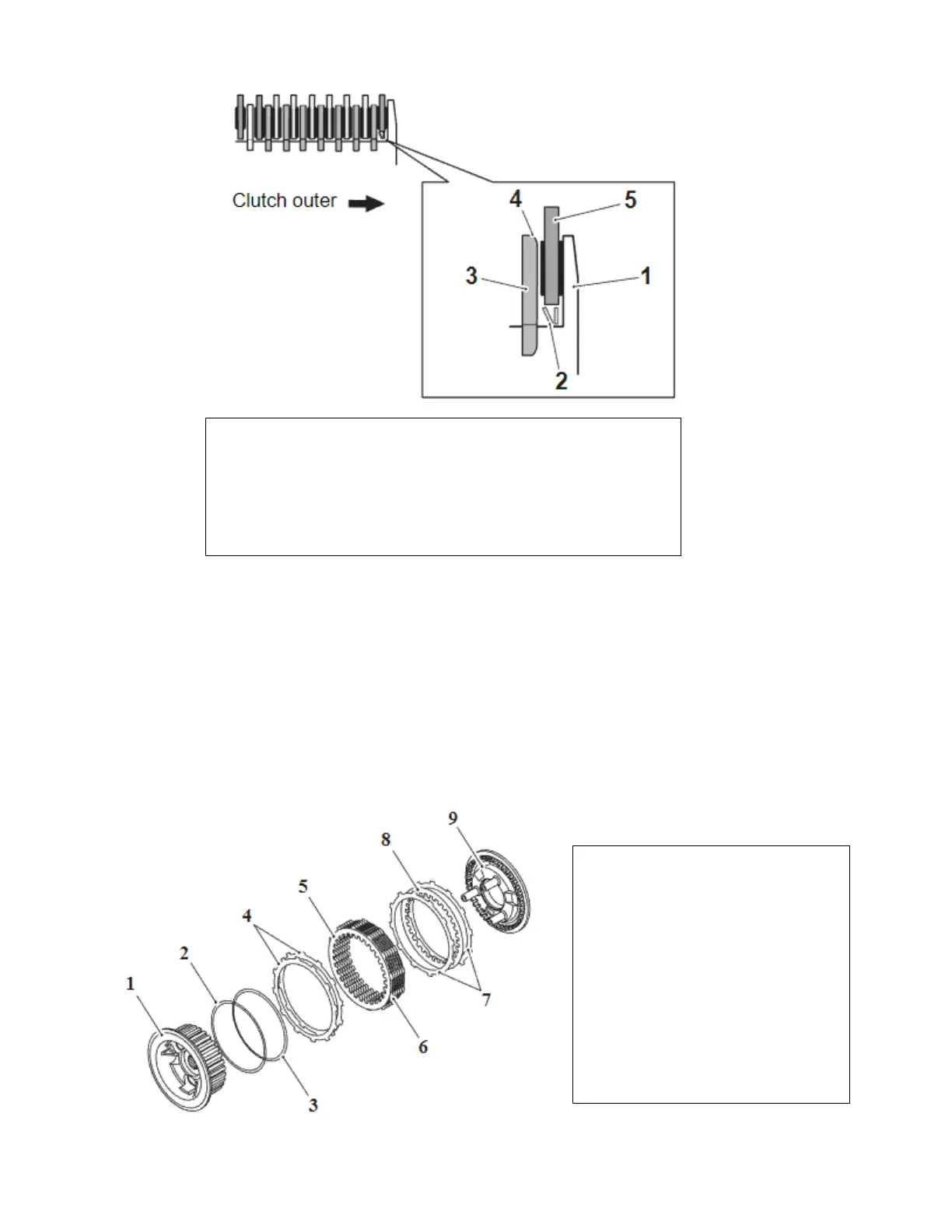

1. Clutch centre
2. Anti-judder spring
3. Steel plate
4. Curved edge
5. Outer friction plate
3. Assemble the following to the clutch centre in the same order and orientation as
noted for removal:
• Anti-judder washer
• Anti-judder spring
• 2 x Outer friction plate
• 8 x steel plates
• 7 x friction plates.
1. Clutch Centre
2. Anti-judder seat washer
3. Anti-judder spring
4. Outer friction plate
5. 8 x centre steel plates
6. 7 x centre friction plates
7. 2 x Inner friction plates
8. Inner steel plate
9. Pressure plate
