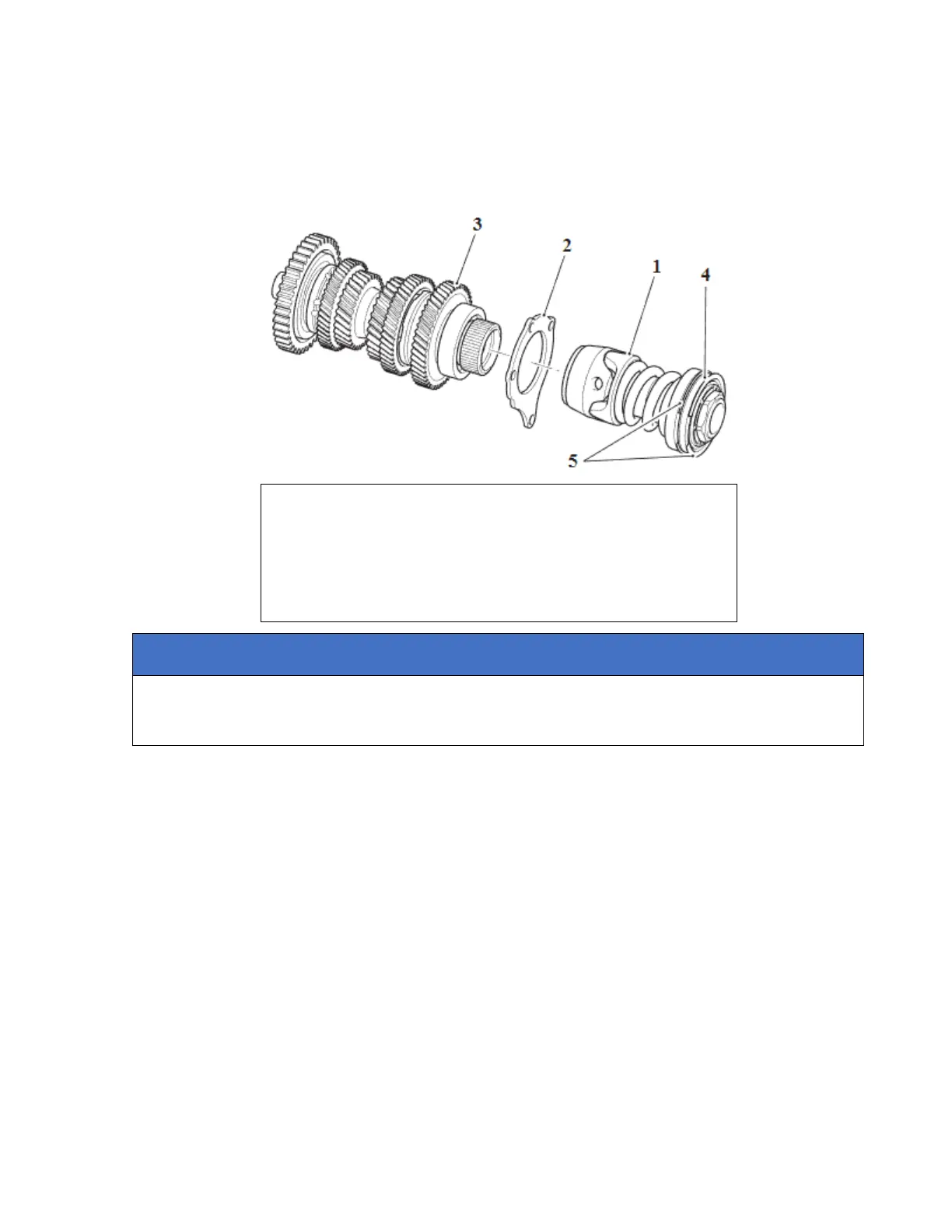

1. Assemble the retaining plate and torsional damper to the output shaft as noted for
removal. Make sure the OUT marking on the retaining plate is facing towards the
torsional damper. Make sure the oil seal is fitted and the there is a snap ring on
either side of it.
1. Torsional damper
2. Retaining plate
3. Output shaft
4. Oil seal
5. Snap rings
NOTICE
Before fitting the output shaft, make sure the selector drum and the input shaft are in
neutral.
2. Place the output shaft and torsional damper assembly in position in the crankcase.
Make sure the two selector forks are positioned as noted for removal.
3. Fit the washer between the output shaft and the upper crankcase as noted for
removal.
