1. If the gear change linkage has been disassembled, make sure the length between the
two ball joints (not the lock nuts) has been set to 77.9 mm before tightening the lock
nuts to 6 Nm.

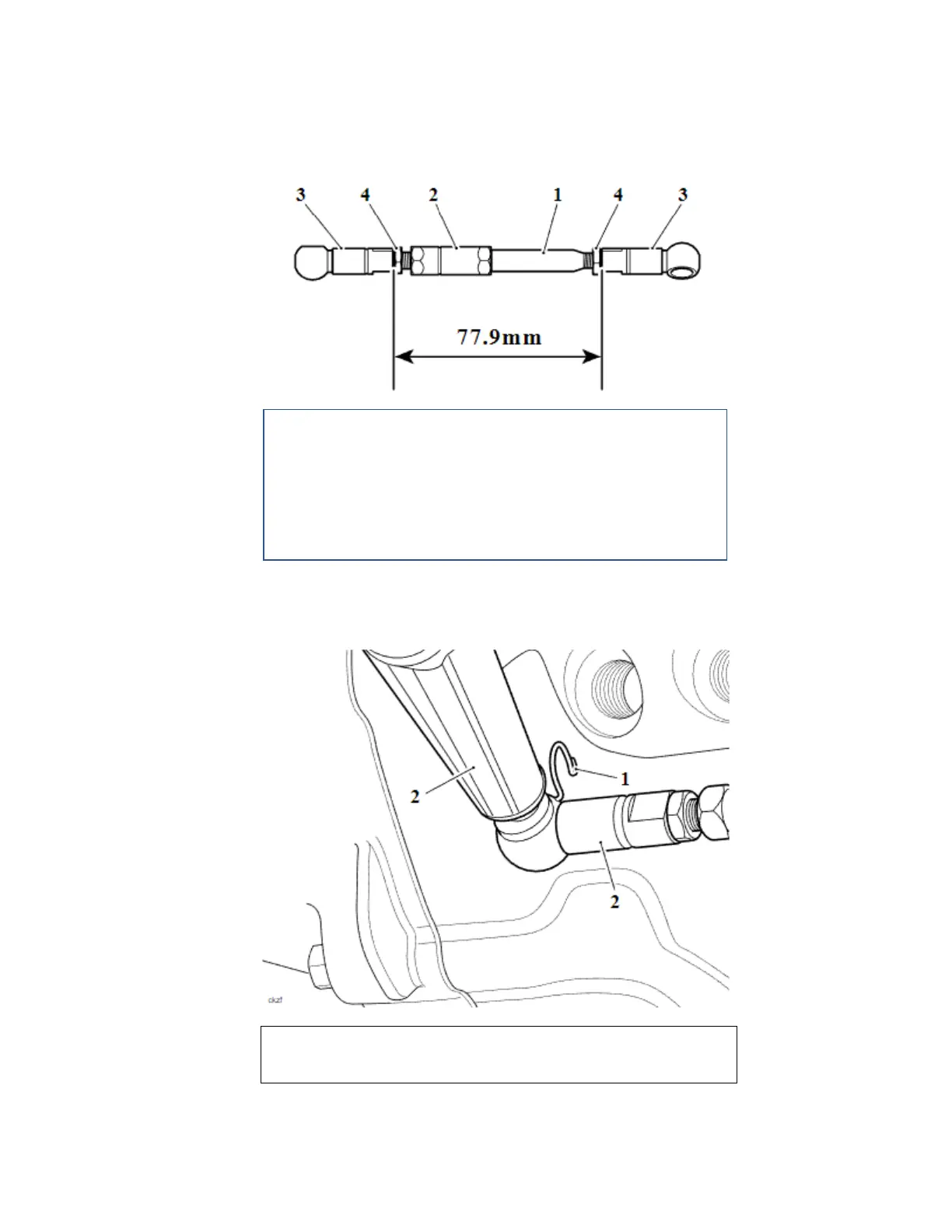

Gear change rod setting dimension
1. Gear change link
2. Gear change extension
3. Ball joints
4. Lock nuts
2. Fit the gear change link to the gear change pedal ball joint as noted for removal and
secure with the wire clip.
1. Wire clip
2. Gear change link
