36. Engage service tool T3880181 into the slots of the left hand frame adjusters and
rotate anticlockwise to fully loosen the frame adjusters.
37. Engage service tool T3880181 into the slots of the right hand cylinder head frame
adjuster and rotate anticlockwise to fully loosen the frame adjuster.
38. Engage service tool T3880103 into the slot of the right hand crankcase frame adjuster
and rotate anticlockwise to fully loosen the frame adjusters.
39. Loosen the outrigger to frame front fixing.
40. Remove the outrigger to frame rear fixing and washers. Discard the lock nut.

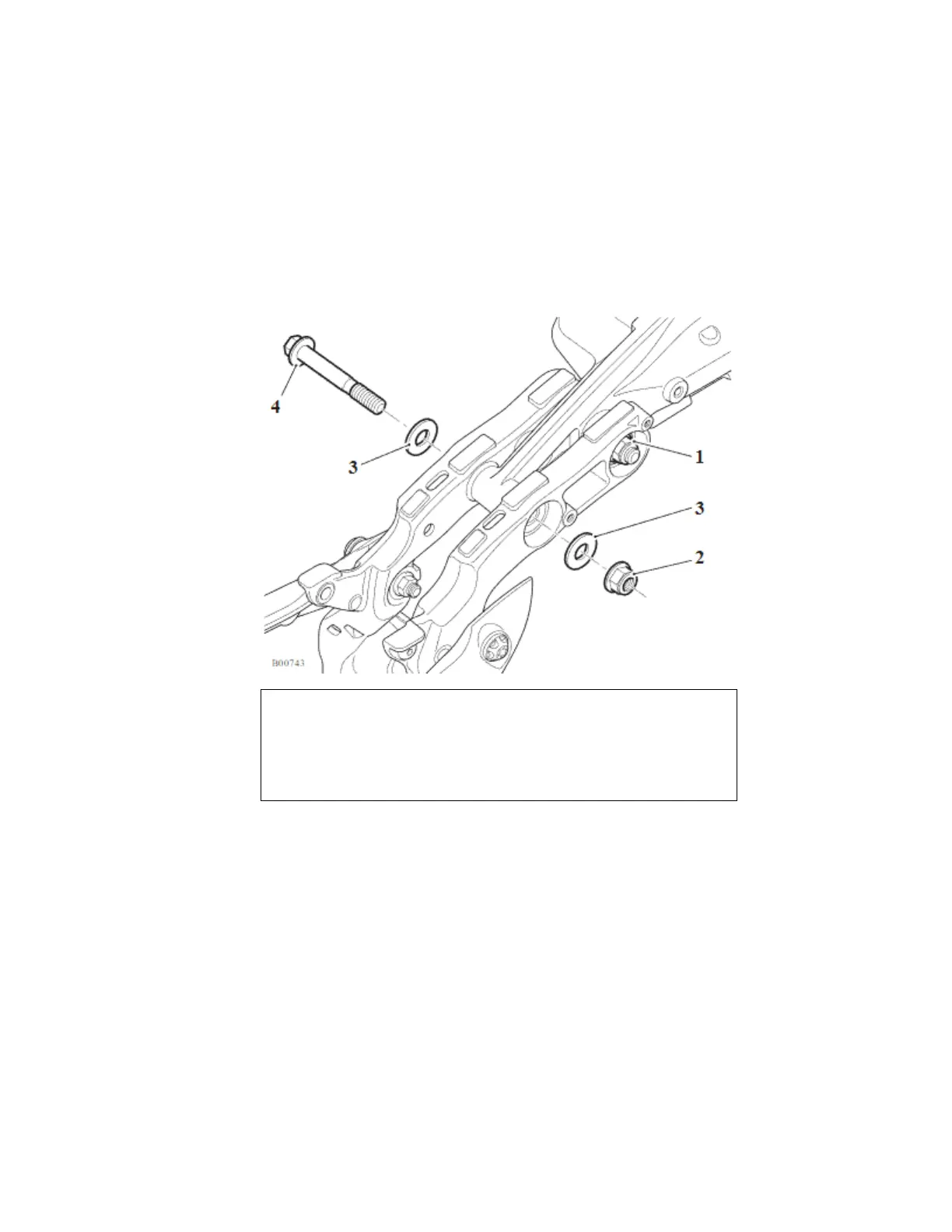

1. Front fixing
2. Lock nut
3. Washers
4. Fixing
