2. Connect the fuel level sensor fly lead connector to the fuel pump assembly harness
as noted for removal. Make sure the fly lead is routed between the fuel pump
harness and the fuel pump bracket.

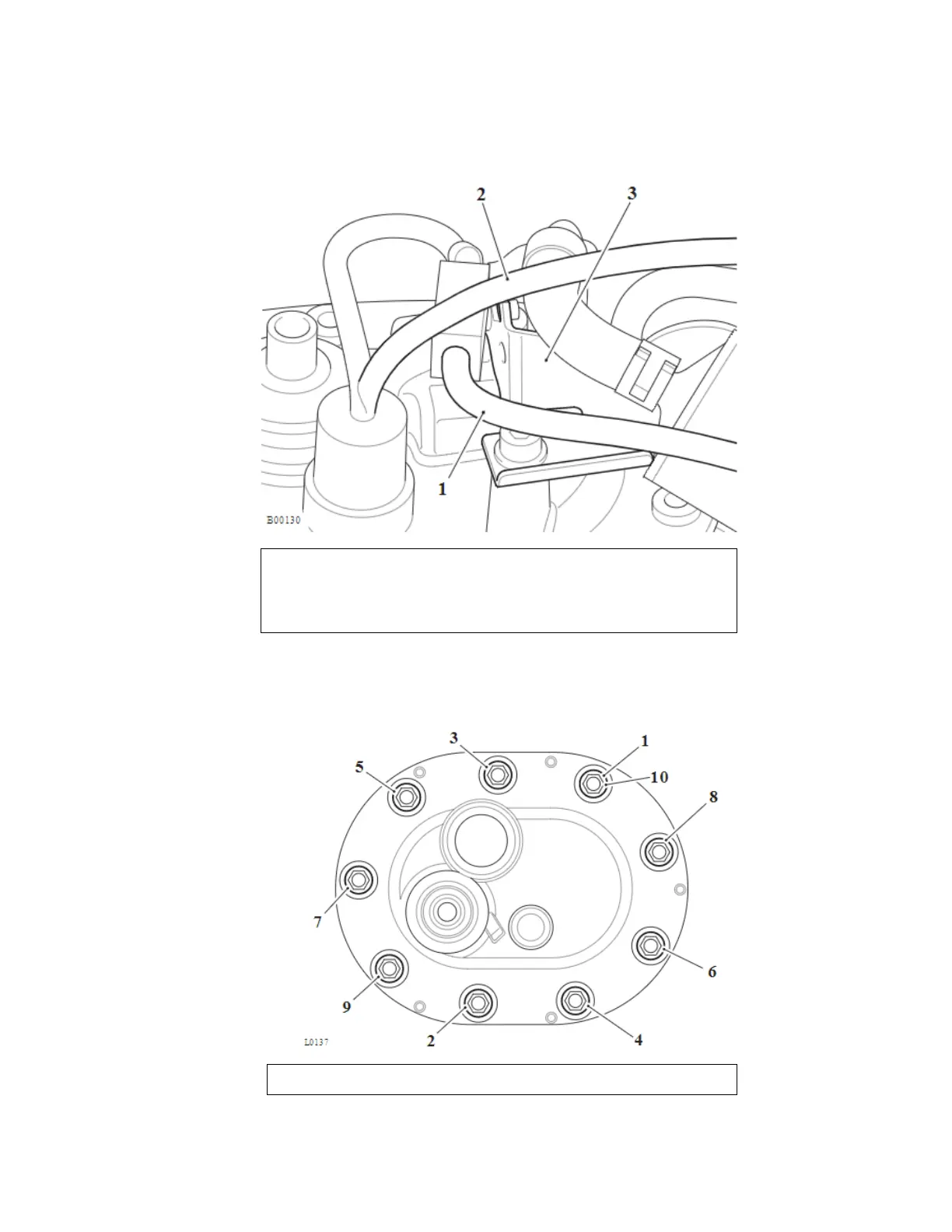

1. Fuel level sensor fly lead
2. Fuel pump assembly harness
3. Fuel pump bracket
3. Refit the fuel pump assembly to the fuel tank. Fit and tighten the fixings to 5 Nm
in the sequence shown below.
Fuel Pump Plate Tightening Sequence
